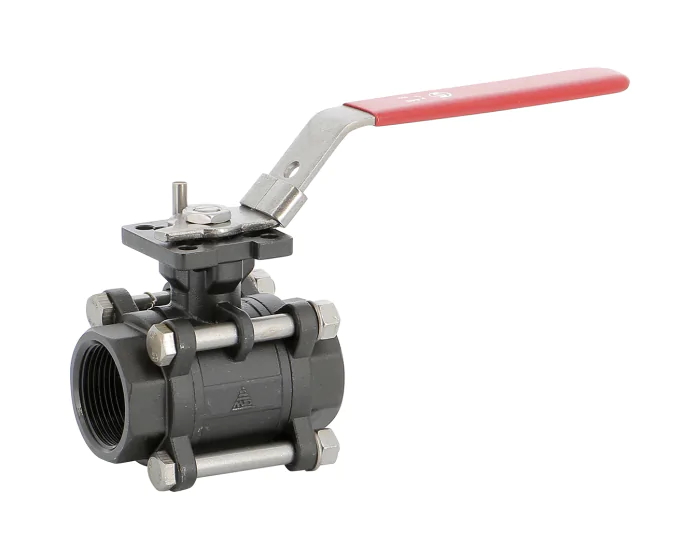

Carbon steel ball valve 737 3-piece body BSP F/F + ISO pad

Discover the 737 series ball valve from the Sferaco performance range, 3-piece body in steel with ISO pad PN63, BSP female/female fitting, full bore, for chemical networks, petrochemical industries
Choose your configuration
See all configurations
Réf.
CONF737004
(Indicative price) €94.45
Details
Details
Option certificate 3.1 Yes
Construction standard EN 12516 - ASME B16.34
CE risk category III Module H
Thread standard ISO 228-1
Tightness test standard EN 12266-1 Rate A
Stem sealing material 25% Graphite filled PTFE gland packing
Antistatic device Yes
Steam Yes
Opening device Handle
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel AISI 316
Lockable Yes
Square, star (mm) Square 9 mm
ATEX compatible Yes
Torque (Nm) 7.6
Diameter of passage 15.00
DN 15
Face to Face (mm) 63.5
Fluid Hydrocarbons. gas
Kv (m³/h) 31.3
Body material Carbon steel A216 WCB (1.0619)
Number of ways 2
Bore Full
ISO pad 5211 Yes
Packing gland Yes
PS (bar) 63
Connections BSP FF
Seats PTFE-Stainless steel
Ball material Stainless steel ASTM A351 CF8M
TS max (°C) 220
TS min (°C) -20
Ball valve design 3-piece body
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
CE Yes
Main product colour Black
Handle material Stainless steel AISI 304
Handle type Red lever

Configurations

Product Reference Price Stock
Carbon steel ball valve 737 3 piece body BSP F/F + ISO pad 1/4'' 737002 €94.45
14 pcs available in stock
Carbon steel ball valve 737 3 piece body BSP F/F + ISO pad 3/8'' 737003 €102.50
30 pcs available in stock
Carbon steel ball valve 737 3-piece body BSP F/F + ISO pad 1/2'' 737004 €126.00
507 pcs available in stock
Carbon steel ball valve 737 3 piece body BSP F/F + ISO pad 3/4'' 737005 €132.18
267 pcs available in stock
Carbon steel ball valve 737 3 piece body BSP F/F + ISO pad 1'' 737006 €156.50
104 pcs available in stock
Carbon steel ball valve 737 3 piece body BSP F/F + ISO pad 1''1/4 737007 €210.80
193 pcs available in stock
Carbon steel ball valve 737 3 piece body BSP F/F + ISO pad 1''1/2 737008 €262.80
68 pcs available in stock
Carbon steel ball valve 737 3 piece body BSP F/F + ISO pad 2'' 737009 €452.55
155 pcs available in stock
Carbon steel ball valve 737 3 piece body BSP F/F + ISO pad 2''1/2 737010 €926.88
17 pcs available in stock
Carbon steel ball valve 737 3 piece body BSP F/F + ISO pad 3'' 737011 €1,070.05
30 pcs available in stock
Carbon steel ball valve 737 3 piece body BSP F/F + ISO pad 4'' 737012 €1,612.88
Currently not in stock
