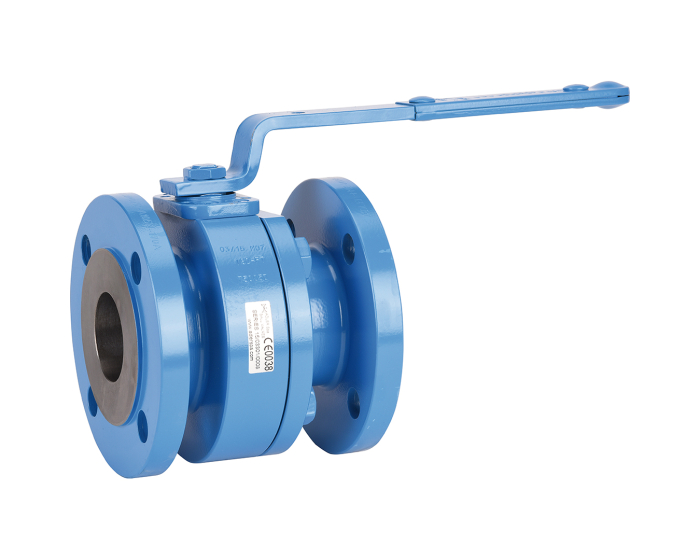

Carbon steel ball valve 750 2 piece body RF PN40/16

Discover the Sferaco 750 series ball valve ADLER FM2, 2-piece body with flanges PN16/40, fire safety ISO 10497, adler type FM2, motorizable, packing gland, double tightness for industries and compressed air
Choose your configuration
See all configurations
Réf.
CONF750050
(Indicative price) €566.50
Details
Details
DN inches NPS 2''
Option certificate 3.1 Yes
Construction standard BS EN 12516-2 - ISO 14313
CE risk category III Module H
NACE MR0175 Yes
Fire safe standard ISO 10497:2004
SIL SIL 1
Type of paint Epoxy
Paint coating thickness (µm) 35.00
EN face-to-face standard EN 558 Series 27
DIN face-to-face standard DIN 3202 F4. DIN 3357-2 ff
Face to face standard error to be processed
Brand ADLER
Tightness test standard EN 12266-1 Rate A
Stem sealing material 15% Graphite filled PTFE gland packing
Antistatic device Yes
Steam Yes
Degassing hole Yes
Opening device Handle
Fugitive emissions standard ISO 15848-1 Class A
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel AISI 304
Square, star (mm) MEP Ø16x10
ATEX compatible Yes
Torque (Nm) 44.0
Diameter of passage 51.00
Face to Face (mm) 150.0
Fluid Hydrocarbons. gas
Body material Carbon steel ASTM A105 N
Number of ways 2
Bore Full
ISO pad 5211 Yes
Packing gland Yes
PS (bar) 40
Seats PTFE
Ball material Stainless steel ASTM A479 304L
TS max (°C) 200
TS min (°C) -28
Ball valve design Split body
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
CE Yes
Main product colour Blue
Handle material Carbon steel
Handle type Blue lever
Fire safe Yes

Configurations

Product Reference Price Stock
Carbon steel ball valve 750 2 piece body RF PN40/16 DN15 750015 €573.58
6 pcs available in stock
Carbon steel ball valve 750 2 piece body RF PN40/16 DN20 750020 €566.50
Currently not in stock
Carbon steel ball valve 750 2 piece body RF PN40/16 DN25 750025 €701.08
2 pcs available in stock
Carbon steel ball valve 750 2 piece body RF PN40/16 DN32 750032 €885.18
10 pcs available in stock
Carbon steel ball valve 750 2 piece body RF PN40/16 DN40 750040 €1,132.95
11 pcs available in stock
Carbon steel ball valve 750 2 piece body RF PN40/16 DN50 750050 €1,317.08
4 pcs available in stock
Carbon steel ball valve 750 2 piece body RF PN16 DN65 750065 €1,798.62
10 pcs available in stock
Carbon steel ball valve 750 2 piece body RF PN40/16 DN80 750080 €2,181.00
Currently not in stock
Carbon steel ball valve 750 2 piece body RF PN40/16 DN100 750100 €2,988.30
9 pcs available in stock
Carbon steel ball valve 750 2 piece body RF PN40/16 DN125 750125 €5,041.82
1 pcs available in stock
Carbon steel ball valve 750 2 piece body RF PN40/16 DN150 750150 €9,580.95
Currently not in stock
