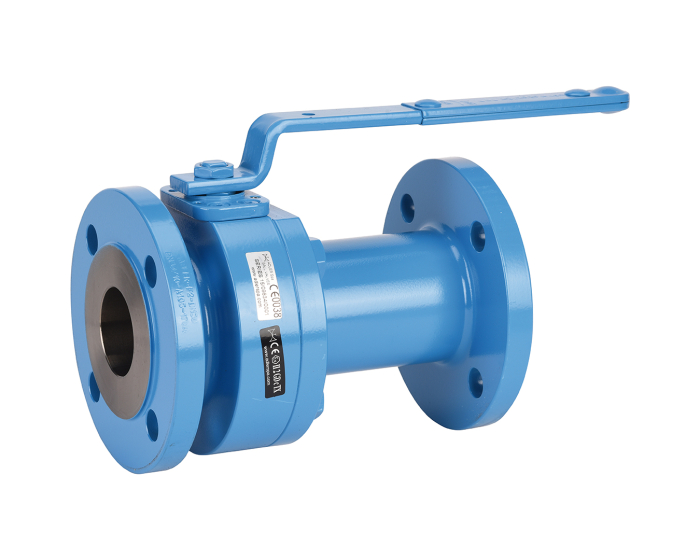

Carbon steel ball valve 754 2 piece body RF PN25

Discover the Sferaco 754 series ball valve, 2-piece body model with PN40 flanges, steel, ISO 10497 fire safety, adler FE2 type, motorizable, stuffing box, double tightness for industries and compressed air
Choose your configuration
See all configurations
Réf.
CONF754050
(Indicative price) €609.00
Details
Details
Option certificate 3.1 Yes
DN inches NPS 2''
Construction standard BS EN 12516-2 - ISO 14313
CE risk category III Module H
NACE MR0175 Yes
Fire safe standard ISO 10497:2004
SIL SIL 1
Type of paint Epoxy
Paint coating thickness (µm) 35.00
EN face-to-face standard EN 558 Series 1
DIN face-to-face standard DIN 3202 F1
Face to face standard EN 558 Series 1. DIN 3202 F1
Brand ADLER
Tightness test standard EN 12266-1 Rate A
Stem sealing material 15% Graphite filled PTFE gland packing
Antistatic device Yes
Steam Yes
Degassing hole Yes
Opening device Handle
Fugitive emissions standard ISO 15848-1 Class A
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel AISI 304
Square, star (mm) MEP Ø16x10
ATEX compatible Yes
Torque (Nm) 42.0
Diameter of passage 51.00
Face to Face (mm) 230.0
Fluid Hydrocarbons. gas
Body material Carbon steel ASTM A105 N
Number of ways 2
Bore Full
ISO pad 5211 Yes
Packing gland Yes
PS (bar) 25
Seats PTFE
Ball material Stainless steel ASTM A479 304L
TS max (°C) 200
TS min (°C) -28
Ball valve design Split body
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
CE Yes
Main product colour Blue
Handle material Carbon steel
Handle type Blue lever
Fire safe Yes

Configurations

Product Reference Price Stock
Carbon steel ball valve 754 2 piece body RF PN25 DN15 754015 €609.00
6 pcs available in stock
Carbon steel ball valve 754 2 piece body RF PN25 DN20 754020 €694.00
5 pcs available in stock
Carbon steel ball valve 754 2 piece body RF PN25 DN25 754025 €771.82
3 pcs available in stock
Carbon steel ball valve 754 2 piece body RF PN25 DN32 754032 €1,055.12
10 pcs available in stock
Carbon steel ball valve 754 2 piece body RF PN25 DN40 754040 €1,295.88
5 pcs available in stock
Carbon steel ball valve 754 2 piece body RF PN25 DN50 754050 €1,621.62
7 pcs available in stock
Carbon steel ball valve 754 2 piece body RF PN25 DN65 754065 €2,329.70
1 pcs available in stock
Carbon steel ball valve 754 2 piece body RF PN16 DN65 754066 €2,329.70
Currently not in stock
Carbon steel ball valve 754 2 piece body RF PN25 DN80 754080 €2,811.25
Currently not in stock
Carbon steel ball valve 754 2 piece body RF PN25 DN100 754100 €3,767.20
Currently not in stock
