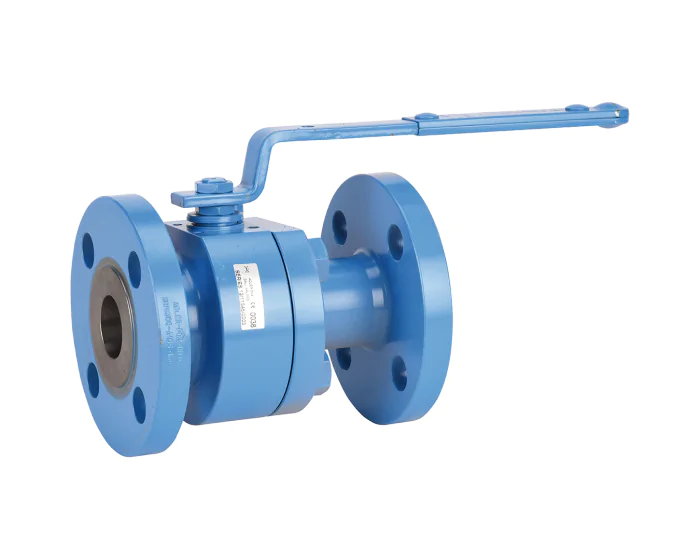

Carbon steel ball valve 758 2-piece body RF ANSI300
The Sferaco 758 series ball valve, 2-piece body model with PN50 Class 300 flanges, steel, ISO 10497 fire safety, adler FE2 type, motorizable, packing gland, double tightness for industries and compressed air.
![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/7/5/758-vanne-sphere-acier-2pieces-adler-brides-class300.jpg)
Documentation
Details
DN inches NPS | 2'' |
---|---|
Option certificate 3.1 | Yes |
Construction standard | BS EN 12516-2 - ISO 14313 - ASME B16.34 |
CE risk category | III Module H |
NACE MR0175 | Yes |
Fire safe standard | ISO 10497:2004 |
SIL | SIL 1 |
Type of paint | Epoxy |
Paint coating thickness (µm) | 35.00 |
EN face-to-face standard | EN 558 Series 4 |
ASME face-to-face standard | ASME B16.10 |
Face to face standard | EN 558 Series 4. ASME B16.10 |
Brand | ADLER |
Tightness test standard | ANSI B16.34 |
Stem sealing material | 15% Graphite filled PTFE gland packing |
Antistatic device | Yes |
Steam | Yes |
Degassing hole | Yes |
Opening device | Handle |
Fugitive emissions standard | ISO 15848-1 Class A |
Application | Industry |
ATEX atmosphere | Group II Cat. 2G/2D |
Shaft/stem matérial | Stainless steel AISI 304 |
Square, star (mm) | MEP Ø16x10 |
ATEX compatible | Yes |
Torque (Nm) | 48.0 |
Face to Face (mm) | 216.0 |
Fluid | Hydrocarbons. gas |
Body material | Carbon steel ASTM A105 N |
Number of ways | 2 |
Bore | Full |
ISO pad 5211 | Yes |
Packing gland | Yes |
PS (bar) | 50 |
Connections | Flanged #300 PN50 |
Seats | PTFE |
Ball material | Stainless steel ASTM A479 304L |
TS max (°C) | 200 |
TS min (°C) | -28 |
Ball valve design | Split body |
ATEX zone | 1 & 21. 2 & 22 |
Warranty period | 2 years |
CE | Yes |
Main product colour | Blue |
Handle material | Carbon steel |
Handle type | Blue lever |
Fire safe | Yes |
