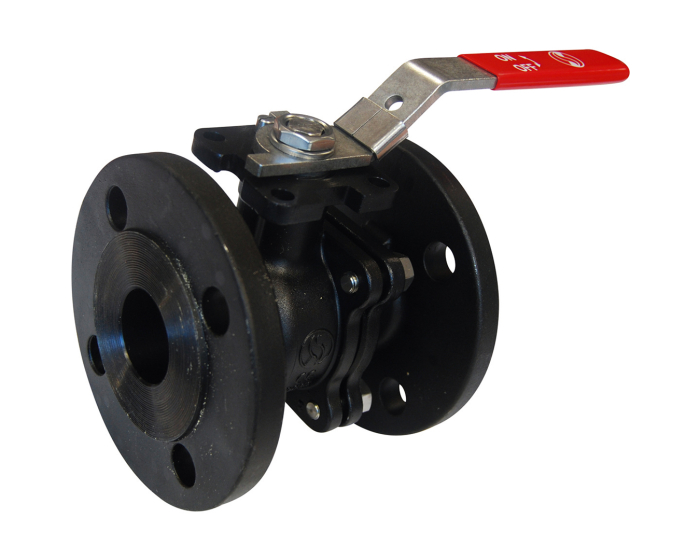

Carbon steel ball valve 764 2 piece body RF PN16
Documentation
Certificate of Conformity
pdf - 211.7 ko
Installation Operating Manual split body ball valve flanged
pdf - 166.3 ko
Technical data sheet
pdf - 582.6 ko
Details
DN inches NPS | 2'' |
---|---|
Option certificate 3.1 | Yes |
Construction standard | EN 12516-1 |
CE risk category | II Module D1 |
EN face-to-face standard | EN 558 Series 27 |
DIN face-to-face standard | DIN 3202 F4. DIN 3357-2 ff |
Face to face standard | error to be processed |
Tightness test standard | API 598 |
Stem sealing material | PTFE gland packing + FKM O-ring |
Antistatic device | Yes |
Opening device | Handle |
Application | Industry |
Shaft/stem matérial | Stainless steel AISI 316 |
Lockable | Yes |
Square, star (mm) | Square 14 mm |
Torque (Nm) | 30 |
Diameter of passage | 150 |
Face to Face (mm) | 150.0 |
Fluid | Hydrocarbons. gas |
Body material | Carbon steel A216 WCB (1.0619) |
Number of ways | 2 |
Bore | Full |
ISO pad 5211 | F07 |
Packing gland | Yes |
PS (bar) | 40 |
Connections | Flanged PN10/40 |
Seats | PTFE-Glass |
Ball material | Stainless steel AISI 304 |
TS max (°C) | 180 |
TS min (°C) | -10 |
Ball valve design | Split body |
Warranty period | 2 years |
CE | Yes |
Main product colour | Black |
Handle material | Stainless steel AISI 304 |
Handle type | Red lever |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Carbon steel ball valve 764 2 piece body RF PN16 DN15 | 764015 | €112.70 |
145 pcs available in stock
|
|
Carbon steel ball valve 764 2 piece body RF PN16 DN20 | 764020 | €147.48 |
146 pcs available in stock
|
|
Carbon steel ball valve 764 2 piece body RF PN16 DN25 | 764025 | €184.28 |
183 pcs available in stock
|
|
Carbon steel ball valve 764 2 piece body RF PN16 DN32 | 764032 | €269.10 |
87 pcs available in stock
|
|
Carbon steel ball valve 764 2 piece body RF PN16 DN40 | 764040 | €321.35 |
123 pcs available in stock
|
|
Carbon steel ball valve 764 2 piece body RF PN16 DN50 | 764050 | €446.88 |
189 pcs available in stock
|
|
Carbon steel ball valve 764 2 piece body RF PN16 DN65 | 764065 | €716.28 |
42 pcs available in stock
|
|
Carbon steel ball valve 764 2 piece body RF PN16 DN80 | 764080 | €925.82 |
113 pcs available in stock
|
|
Carbon steel ball valve 764 2 piece body RF PN16 DN100 | 764100 | €1,280.45 |
94 pcs available in stock
|
|
Carbon steel ball valve 764 2 piece body RF PN16 DN125 | 764125 | €2,230.68 |
29 pcs available in stock
|
|
Carbon steel ball valve 764 2 piece body RF PN16 DN150 | 764150 | €2,952.05 |
45 pcs available in stock
|
