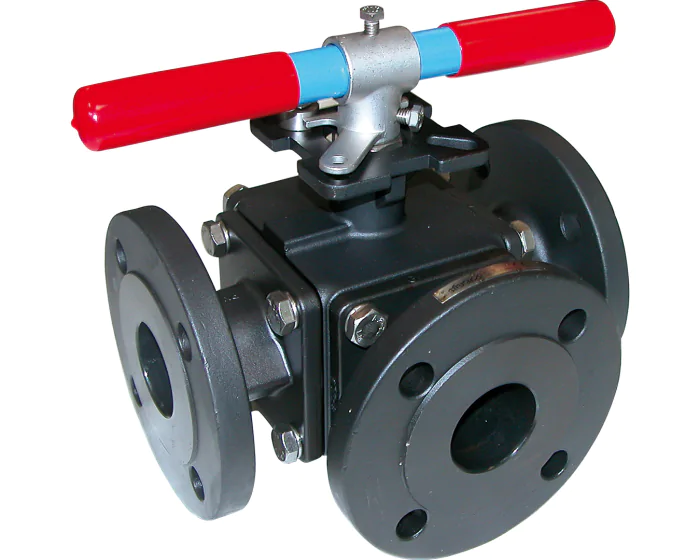

Carbon steel ball valve 784 3W-T port RF PN16

The 784 series ball valve is a 3-way flanged PN16 model, made of carbon steel, T-shaped port, with injectable shaft, ISO pad, and ATEX compatibility for chemicals, petrochemicals, heating, water, and compressed air.
Choose your configuration
See all configurations
Réf.
CONF784050
(Indicative price) €1,050.38
Details
Details
DN inches NPS 2''
Option certificate 3.1 Yes
CE risk category III Module H
Tightness test standard EN 12266-1 Rate A
Stem sealing material PTFE gland packing + FKM O-ring
Antistatic device Yes
Opening device Handle
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel AISI 304
Lockable Yes
Square, star (mm) Square 17 mm
ATEX compatible Yes
Torque (Nm) 126.0
Diameter of passage 49.00
Face to Face (mm) 253.0
Fluid Hydrocarbons. gas
Kv (m³/h) 160.6
Body material Carbon steel A216 WCB (1.0619)
Number of ways 3
Bore Full
ISO pad 5211 Yes
Packing gland Yes
PS (bar) 16
Connections Flanged PN10/16
Seats PTFE-Glass
Ball material Stainless steel AISI 304
TS max (°C) 150
TS min (°C) -20
3-way type T
Ball valve design 3-way
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
CE Yes
Main product colour Black
Handle material Carbon steel
Handle type Tubular

Configurations

Product Reference Price Stock
Carbon steel ball valve 784 3W-T port RF PN16 DN25 784025 €1,050.38
23 pcs available in stock
Carbon steel ball valve 784 3W-T port RF PN16 DN32 784032 €1,349.50
18 pcs available in stock
Carbon steel ball valve 784 3W-T port RF PN16 DN40 784040 €1,399.05
6 pcs available in stock
Carbon steel ball valve 784 3W-T port RF PN16 DN50 784050 €2,118.95
28 pcs available in stock
Carbon steel ball valve 784 3W-T port RF PN16 DN65 784065 €3,413.70
11 pcs available in stock
Carbon steel ball valve 784 3W-T port RF PN16 DN80 784080 €4,192.32
38 pcs available in stock
Carbon steel ball valve 784 3W-T port RF PN16 DN100 784100 €8,887.45
10 pcs available in stock
Carbon steel ball valve 784 3W-T port RF PN16 DN125 784125 €11,330.95
4 pcs available in stock
Carbon steel ball valve 784 3W-T port RF PN16 DN150 784150 €12,222.20
Currently not in stock
