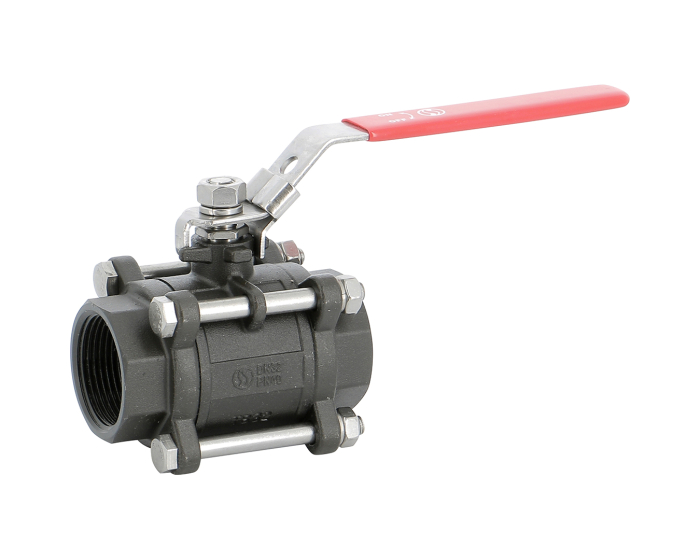

Carbon steel ball valve 796 3-piece body BSP/NPT

Discover the 796 series ball valve from the Sferaco initial range, 3-piece body in steel with BSP-NPT female/female connection and PTFE packing gland for the chemical, pharmaceutical and petrochemical industries
Choose your configuration
See all configurations
Réf.
CONF796004
(Indicative price) €28.08
Details
Details
Option certificate 3.1 Yes
CE risk category III Module H
Thread standard ISO 228-1
Tightness test standard API 598
Stem sealing material PTFE gland packing
Opening device Handle
Application Industry
Shaft/stem matérial Stainless steel AISI 304
Lockable Yes
Torque (Nm) 2.5
Diameter of passage 15.00
DN 15
Face to Face (mm) 63.3
Fluid Oxygen / Argon / Nitrogen
Kv (m³/h) 20.7
Body material Carbon steel A216 WCB (1.0619)
Number of ways 2
Bore Full
ISO pad 5211 No
Packing gland Yes
PS (bar) 63
Seats PTFE-Glass
Ball material Stainless steel AISI 304
TS max (°C) 180
TS min (°C) -20
Ball valve design 3-piece body
Warranty period 2 years
CE Yes
Main product colour Black
Handle material Stainless steel AISI 304
Handle type Red lever

Configurations

Product Reference Price Stock
Carbon steel ball valve 796 3 piece body BSP 1/4'' 796002 €28.08
44 pcs available in stock
Carbon steel ball valve 796 3 piece body BSP 3/8'' 796003 €28.08
153 pcs available in stock
Carbon steel ball valve 796 3-piece body BSP 1/2'' 796004 €36.08
1740 pcs available in stock
Carbon steel ball valve 796 3 piece body BSP 3/4'' 796005 €40.12
674 pcs available in stock
Carbon steel ball valve 796 3 piece body BSP 1'' 796006 €59.62
616 pcs available in stock
Carbon steel ball valve 796 3 piece body BSP 1''1/4 796007 €81.88
22 pcs available in stock
Carbon steel ball valve 796 3 piece body BSP 1''1/2 796008 €136.70
580 pcs available in stock
Carbon steel ball valve 796 3 piece body BSP 2'' 796009 €183.30
534 pcs available in stock
Carbon steel ball valve 796 3 piece body BSP 2''1/2 796010 €373.12
45 pcs available in stock
Carbon steel ball valve 796 3 piece body BSP 3'' 796011 €544.75
41 pcs available in stock
Carbon steel ball valve 796 3 piece body BSP 4'' 796012 €1,062.20
16 pcs available in stock
Carbon steel ball valve 796 3 piece body NPT 1/4'' 796102 €28.08
204 pcs available in stock
Carbon steel ball valve 796 3 piece body NPT 3/8'' 796103 €28.08
32 pcs available in stock
Carbon steel ball valve 796 3 piece body NPT 1/2'' 796104 €36.08
318 pcs available in stock
Carbon steel ball valve 796 3 piece body NPT 3/4'' 796105 €40.12
102 pcs available in stock
Carbon steel ball valve 796 3 piece body NPT 1'' 796106 €59.62
23 pcs available in stock
Carbon steel ball valve 796 3 piece body NPT 1''1/4 796107 €81.88
66 pcs available in stock
Carbon steel ball valve 796 3 piece body NPT 1''1/2 796108 €136.70
16 pcs available in stock
Carbon steel ball valve 796 3 piece body NPT 2'' 796109 €183.30
Currently not in stock
