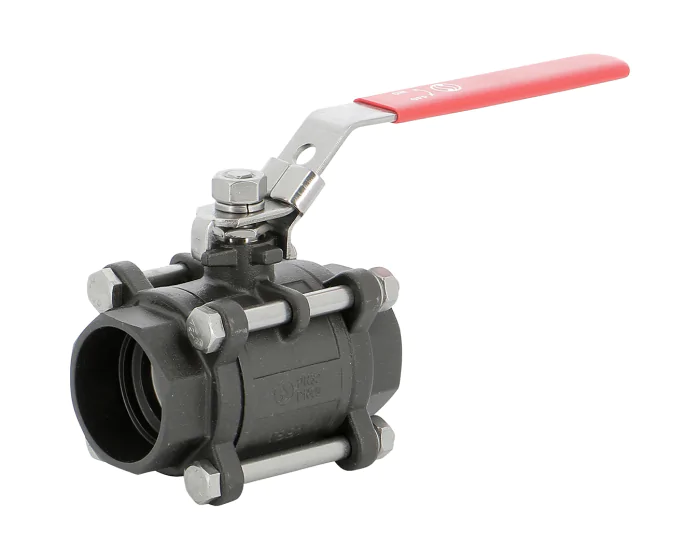

Carbon steel ball valve 798 3-piece body SW

Discover the 798 series ball valve from Sferaco's initial range, 3-piece body in welding SW steel, with PTFE packing gland for the chemical, pharmaceutical and petrochemical industries
Choose your configuration
See all configurations
Réf.
CONF798015
(Indicative price) €28.08
Details
Details
Option certificate 3.1 Yes
DN inches NPS 1/2''
CE risk category III Module H
Tightness test standard API 598
Stem sealing material PTFE gland packing
Opening device Handle
Application Industry
Shaft/stem matérial Stainless steel AISI 304
Lockable Yes
Torque (Nm) 2.5
Diameter of passage 15.00
Face to Face (mm) 63.3
Fluid Oxygen / Argon / Nitrogen
Kv (m³/h) 20.7
Body material Carbon steel A216 WCB (1.0619)
Number of ways 2
Bore Full
ISO pad 5211 No
Packing gland Yes
PS (bar) 63
Connections Welding SW
Seats PTFE-Glass
Ball material Stainless steel AISI 304
TS max (°C) 180
TS min (°C) -20
Ball valve design 3-piece body
Warranty period 2 years
CE Yes
Main product colour Black
Handle material Stainless steel AISI 304
Handle type Red lever

Configurations

Product Reference Price Stock
Carbon steel ball valve 798 3 piece body SW 1/4'' 798008 €28.08
51 pcs available in stock
Carbon steel ball valve 798 3 piece body SW 3/8'' 798010 €28.08
93 pcs available in stock
Carbon steel ball valve 798 3-piece body SW 1/2'' 798015 €36.08
694 pcs available in stock
Carbon steel ball valve 798 3 piece body SW 3/4'' 798020 €40.12
270 pcs available in stock
Carbon steel ball valve 798 3 piece body SW 1'' 798025 €59.62
694 pcs available in stock
Carbon steel ball valve 798 3 piece body SW 1''1/4 798032 €81.88
167 pcs available in stock
Carbon steel ball valve 798 3 piece body SW 1''1/2 798040 €136.70
219 pcs available in stock
Carbon steel ball valve 798 3 piece body SW 2'' 798050 €183.30
178 pcs available in stock
Carbon steel ball valve 798 3 piece body SW 2''1/2 798065 €373.12
23 pcs available in stock
Carbon steel ball valve 798 3 piece body SW 3'' 798080 €544.75
22 pcs available in stock
Carbon steel ball valve 798 3 piece body SW 4'' 798100 €1,062.20
24 pcs available in stock
