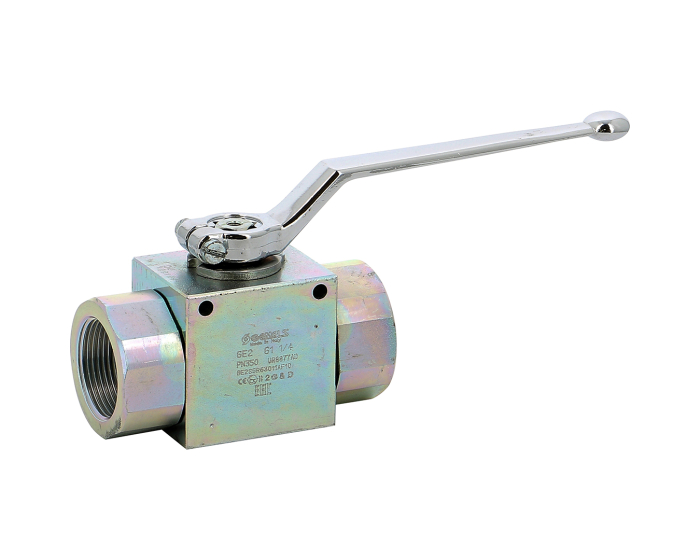

Carbon steel ball valve 799 BSP female/female high pressure

Discover the Sferaco 799 series ball valve in galvanised steel, high pressure, reduced bore for hydraulic applications
Choose your configuration
See all configurations
Réf.
CONF799004
(Indicative price) €44.83
Details
Details
Thread standard ISO 228-1
Tightness test standard API 598
Stem sealing material NBR O-ring
Opening device Handle
Application Hydraulics
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Carbon steel 1.0737
ATEX compatible Yes
Torque (Nm) 25.0
Diameter of passage 13.00
DN 15
Face to Face (mm) 83.0
Fluid Hot water / Cold water / Oil / Some acids
Kv (m³/h) 30.2
Body material Carbon steel
Number of ways 2
Bore Reduced
ISO pad 5211 No
PS (bar) 500
Connections BSP FF
Seats POM
Ball material Chrome-plated steel 1.0737
TS max (°C) 100
TS min (°C) -10
Ball valve design Monobloc
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
Handle material Aluminium
Handle type Yellow lever

Configurations

Product Reference Price Stock
Carbon steel ball valve 799 BSP high pressure 1/4'' 799002 €44.82
374 pcs available in stock
Carbon steel ball valve 799 BSP high pressure 3/8'' 799003 €47.32
175 pcs available in stock
Carbon steel ball valve 799 BSP high pressure 1/2'' 799004 €51.95
445 pcs available in stock
Carbon steel ball valve 799 BSP high pressure 3/4'' 799005 €96.62
548 pcs available in stock
Carbon steel ball valve 799 BSP high pressure 1'' 799006 €119.82
190 pcs available in stock
Carbon steel ball valve 799 BSP high pressure 1''1/4 799007 €129.50
152 pcs available in stock
Carbon steel ball valve 799 BSP high pressure 1''1/2 799008 €406.55
134 pcs available in stock
Carbon steel ball valve 799 BSP high pressure 2'' 799009 €492.38
51 pcs available in stock
