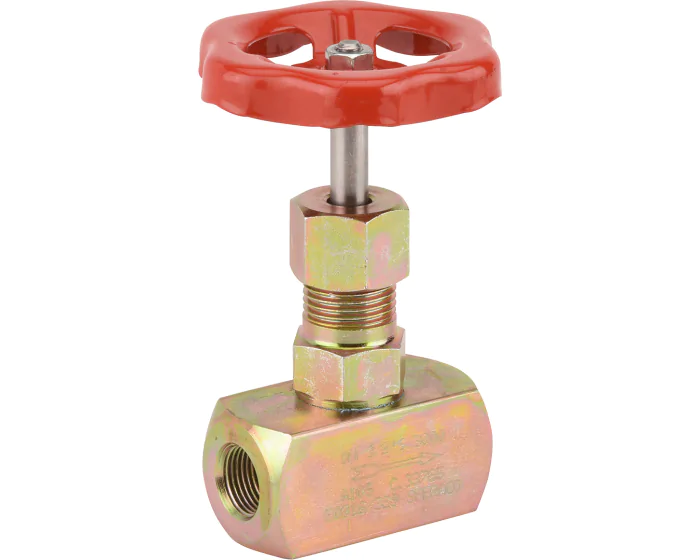

Carbon steel needle valve 489 BSP female/female

Discover the 489 series needle valve from the Sferaco range in forged steel, female / female BSP connection, with packing gland Fibers for oil, steam and high pressure industries
Choose your configuration
See all configurations
Réf.
CONF489004
(Indicative price) €89.50
Details
Details
Option certificate 3.1 Yes
Bonnet material Carbon steel ASTM A105
Tightness test standard API 598
Stem sealing material Klingerite
Steam Yes
Opening device Handwheel
Application Industry
Shaft/stem matérial Stainless steel AISI 410
Diameter of passage 8.00
DN 15
Face to Face (mm) 70.0
Sealing Metal / Metal
Fluid Oxygen / Argon / Nitrogen
Kv (m³/h) 3.5
Body material Carbon steel ASTM A105 N
Bore Standard
Packing gland Yes
PS (bar) 200
Connections BSP FF
TS max (°C) 180
TS min (°C) 0
Warranty period 2 years
Type of stem Rising
Plug material Stainless steel AISI 410
Handle material Carbon steel

Configurations

Product Reference Price Stock
Carbon steel needle valve 489 BSP 1/4'' 489002 €89.50
217 pcs available in stock
Carbon steel needle valve 489 BSP 3/8'' 489003 €89.50
65 pcs available in stock
Carbon steel needle valve 489 BSP 1/2'' 489004 €97.32
180 pcs available in stock
Carbon steel needle valve 489 BSP 3/4'' 489005 €133.38
44 pcs available in stock
Carbon steel needle valve 489 BSP 1'' 489006 €205.55
41 pcs available in stock
Carbon steel needle valve 489 BSP 1''1/4 489007 €352.25
43 pcs available in stock
Carbon steel needle valve 489 BSP 1''1/2 489008 €416.95
21 pcs available in stock
Carbon steel needle valve 489 BSP 2'' 489009 €556.50
43 pcs available in stock
