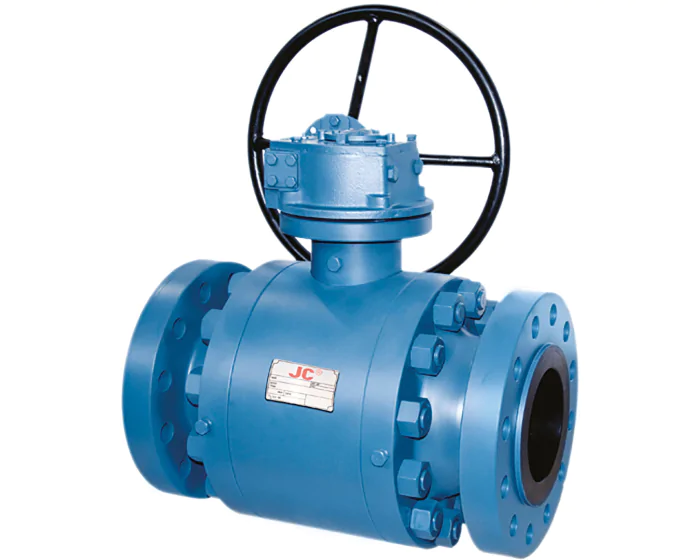

Carbon steel trunnion ball valves RF ANSI300
Discover the SFERACO 6030AICG flanged ball valve with steel Class 300 PN50 ISO pad, fire safe, stainless steel ball, PTFE seats filled with graphite, long gap for fluid shut-off - JC range
Documentation
Certificate of Conformity
pdf - 225.8 ko
Installation operating manual trunnion ball valve JC
pdf - 5.2 mo
Details
DN inches NPS | 2'' |
---|---|
Brand | JC VALVES |
Torque (Nm) | 106.4 |
Diameter of passage | 49.00 |
Face to Face (mm) | 216.0 |
Fluid | Hydrocarbons. gas |
PS (bar) | 50 |
Connections | Flanged #300 PN50 |
Seats | PTFE-Graphite |
TS max (°C) | -29 |
TS min (°C) | 260 |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
6030AICG carbon steel trunnion ball valve RF ANSI300 2'' | 6030AICG050 | €3,399.52 |
Currently not in stock
|
|
6030AICG carbon steel trunnion ball valve RF ANSI300 3'' | 6030AICG080 | €5,408.32 |
Currently not in stock
|
|
6030AICG carbon steel trunnion ball valve RF ANSI300 4'' | 6030AICG100 | €7,875.48 |
Currently not in stock
|
|
6030AICG carbon steel trunnion ball valve RF ANSI300 8'' | 6030AICG200 | €23,898.80 |
Currently not in stock
|
|
6030AICG carbon steel trunnion ball valve RF ANSI300 10'' | 6030AICG250 | €35,291.68 |
Currently not in stock
|
|
6030AICG carbon steel trunnion ball valve RF ANSI300 12'' | 6030AICG300 | €54,395.00 |
Currently not in stock
|
