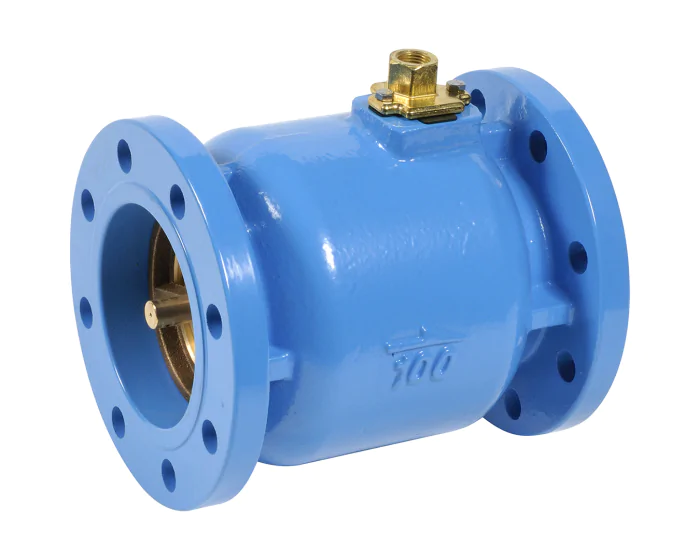

Coaxial cast iron valve BFF
The BFF series coaxial valve consists of a body in epoxy coated cast iron, inner parts in brass and bronze and NBR seat. It is actuated by an e-float valve included, to be connected by pipes. PS: 16 bar - TS: -10/+80°C.
Documentation
Certificate of Conformity
pdf - 207.4 ko
Data sheet BFF valve with float control
pdf - 352.4 ko
Details
Option certificate 3.1 | No |
---|---|
Torque (Nm) | 106.4 |
Face to Face (mm) | 190.0 |
Gasket | NBR |
Body material | Cast iron |
PS (bar) | 16 |
Connections | Flanged PN16 |
TS max (°C) | 80 |
TS min (°C) | -10 |
Warranty period | 1 year |
CE | Excluded (Article 4. §3) |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Coaxial cast iron valve BFF DN50 | 292050 | €1,825.90 |
Currently not in stock
|
|
Coaxial cast iron valve BFF DN65 | 292065 | €2,003.05 |
Currently not in stock
|
|
Coaxial cast iron valve BFF DN80 | 292080 | €2,445.90 |
Currently not in stock
|
|
Coaxial cast iron valve BFF DN100 | 292100 | €3,187.22 |
Currently not in stock
|
|
Coaxial cast iron valve BFF DN125 | 292125 | €4,673.22 |
Currently not in stock
|
|
Coaxial cast iron valve BFF DN150 | 292150 | €6,246.95 |
Currently not in stock
|
|
Coaxial cast iron valve BFF DN200 | 292200 | €14,079.95 |
Currently not in stock
|
