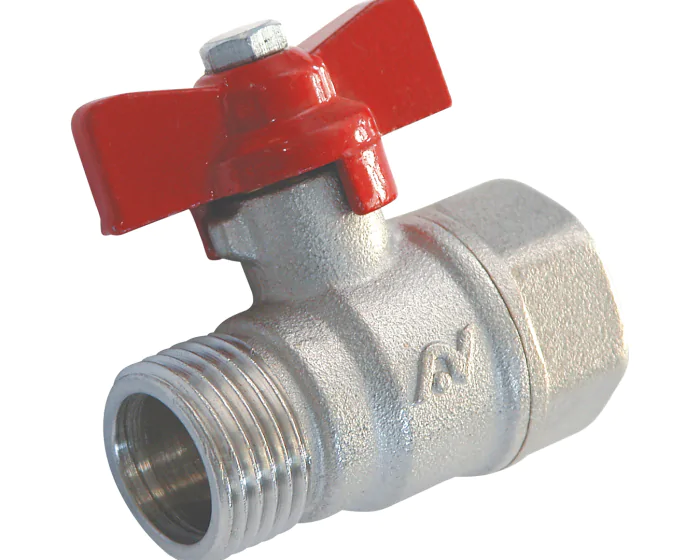

Compact ball valve F1/2''-M1/2'' for flat bearing manifold
Find the brass valve for distribution manifold 678 series, operated by butterfly handle for water, heating, air conditioning, sprinkling and irrigation systems. Compact size for distribution manifold.
Réf.
678004
(Indicative price)
€15.08
908 pcs available in stock
Documentation
Certificate of Conformity
pdf - 208.4 ko
Certificate of Conformity
pdf - 208.4 ko
Fiche technique vanne à sphère laiton pour collecteur MF
pdf - 340.6 ko
Notice montage vanne à sphere laiton
pdf - 318.4 ko
Installation operating manual brass ball valve
pdf - 259.2 ko
Details
DN inches NPS | 1/2'' |
---|---|
DN metric | 15/21 |
Brand | AIRAGA |
Thread standard | ISO 228-1 |
Stem sealing material | PTFE gland packing |
Type of coating | Nickel-plated |
Opening device | Handle |
Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
Shaft/stem matérial | Brass CW614N |
Torque (Nm) | 106.4 |
Diameter of passage | 12.00 |
DN | 15 |
Face to Face (mm) | 48.0 |
Fluid | Hot / Cold water |
Body material | Brass CW617N |
Number of ways | 2 |
Bore | Reduced |
Packing gland | Yes |
PS (bar) | 25 |
Connections | BSP MF |
Seats | PTFE |
Ball material | Chrome-plated brass CW614N |
TS max (°C) | 100 |
TS min (°C) | -10 |
Warranty period | 2 years |
Handle material | Aluminium |
Handle type | Red butterfly handle |
