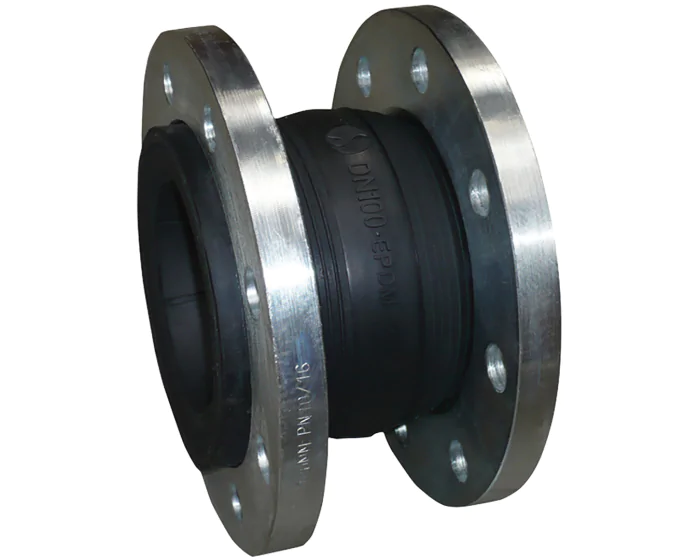

EPDM expansion joint 1502 PN16
Syveco offers the expansion joint series 1502, elastomeric, with flanges in galvanised steel, single bellow EPDM, hardened steel cable, flanged attachment PN16 for water supply and distribution networks
Documentation
Certificate of Conformity
pdf - 212.6 ko
Fiche technique manchon compensateur EPDM brides PN16
pdf - 394.4 ko
Notice montage manchon compensateur à brides
pdf - 626.5 ko
Installation operating manual expansion joint flanged
pdf - 577.7 ko
Technical datasheet expansion joint EPDM flanged PN16
pdf - 345.1 ko
Details
DN inches NPS | 8'' |
---|---|
Flange or fitting material | Electro-zinc plated steel |
Application | Water supply / Irrigation / Watering |
Torque (Nm) | 106.4 |
Face to Face (mm) | 205.0 |
Fluid | Cold water |
Body material | EPDM |
PS (bar) | 16 |
Connections | With rotating flanges PN16 |
TS max (°C) | 100 |
TS min (°C) | -10 |
