Documentation
Fiche technique Série U 1705 - UF+R+L
pdf - 693.9 ko
Data sheet Series U 1705 - UF+R+L
pdf - 691.1 ko
Details
Option certificate 3.1 | No |
---|---|
Maximum flow rate (Nm³/h) | 420.0 |
DN | 3/4'' |
Face to Face (mm) | 248.5 |
Filtration (µm) | 5 |
Fluid | Compressed air / Nitrogen |
Body material | Aluminium |
PS (bar) | 10 |
Connections | BSP FF |
TS max (°C) | 50 |
TS min (°C) | 0 |
Warranty period | 1 year |

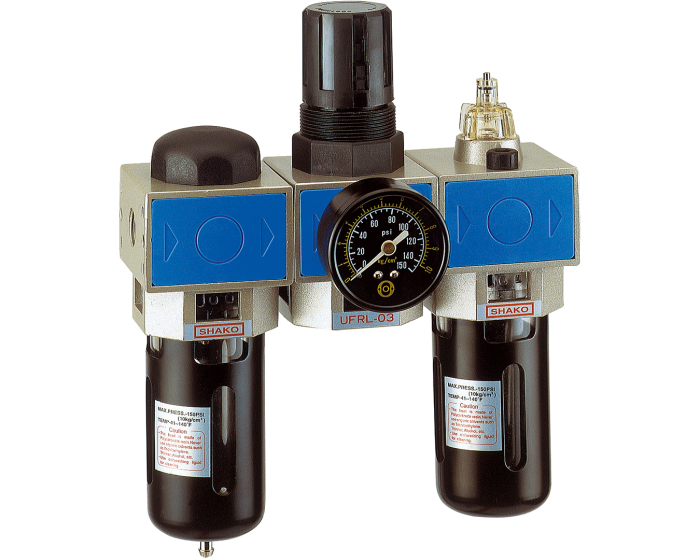

Filter - regulator - lubricator UF-UR-UL 1705
The UF + R + L filter-lubricator is designed for the treatment of compressed air or neutral gases. Robust aluminium body. Maximum inlet pressure: 10 bar. Supplied with support and pressure gauge indicating the downstream pressure.
