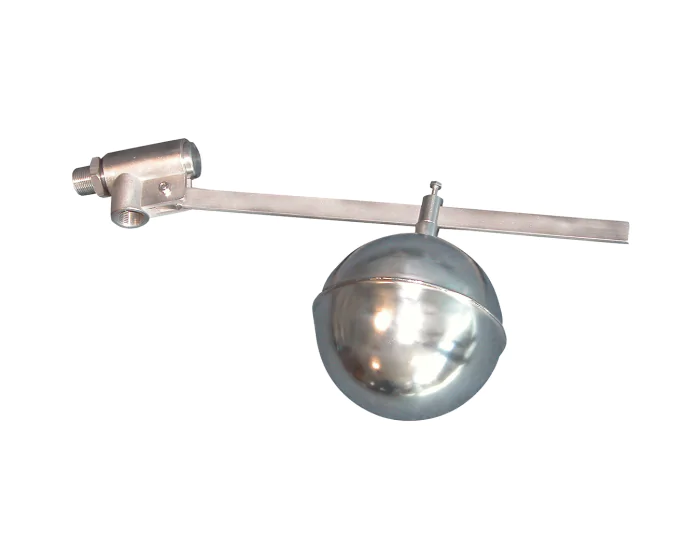

Full stainless steel float valve 494 FKM gasket
The 494 series float valve is made of stainless steel body, FKM gasket, stainless steel float, BSP male connection for water and neutral fluids.
Documentation
Certificate of Conformity
pdf - 211 ko
Fiche technique robinet flotteur inox BSP
pdf - 327.1 ko
Details
DN inches NPS | 3/4'' |
---|---|
DN metric | 20/27 |
Opening device | Lever |
Application | Industry |
Opening device/signal | Manual |
Torque (Nm) | 106.4 |
Float diameter (mm) | 180 |
DN | 20 |
Fluid | Acids |
Gasket | FKM + EPDM |
Body material | Stainless steel 304 (1.4301) |
PS (bar) | 6 |
Connections | BSP M |
Seats | Stainless steel AISI 304 |
TS max (°C) | 90 |
TS min (°C) | -5 |
Warranty period | 2 years |
Float material | Stainless steel |
Plug material | Stainless steel AISI 304 |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Full stainless steel float valve 494 FKM gasket 3/4'' | 494005 | €640.00 |
41 pcs available in stock
|
|
Full stainless steel float valve 494 FKM gasket 3/4'' | 494105 | €665.00 |
6 pcs available in stock
|
