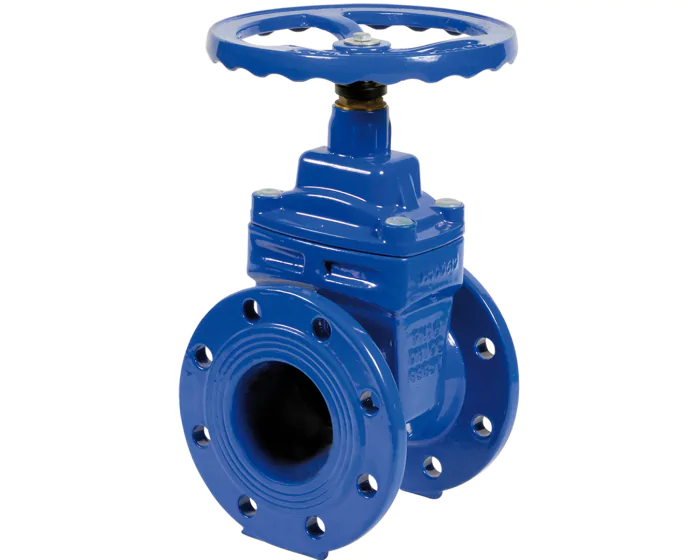

Gate valve 182 NBR wedge PN10/16 DIN F4

Syveco offers the Sferaco 182 series gate valve, rubber, clockwise closing, NBR gate, DIN 3202 F4 gap for drinking water, water treatment and supply and irrigation
Choose your configuration
See all configurations
Réf.
CONF182050
(Indicative price) €155.05
Details
Details
Option certificate 3.1 Yes
DN inches NPS 2''
Bonnet material Cast iron EN GJS-500-7
Construction standard DIN EN 1171
Type of paint Epoxy
Paint coating thickness (µm) 250.00
DIN face-to-face standard DIN 3202-1 F4
Face to face standard EN 558 series 14. DIN 3202-1 F4
Tightness test standard EN 12266-1. Rate A
Bonnet Bolted
Closing direction Clockwise closing
Opening device Handwheel
Application Water supply and distribution network
Shaft/stem matérial Stainless steel AISI 420
Torque (Nm) 20.0
Diameter of passage 50.00
Face to Face (mm) 150.0
Kv (m³/h) 229.0
Body material Ductile iron
Gate material Cast iron EN GJS-500-7 + EPDM
Bore Full
PS (bar) 16
RAL (Paint) 5005
Seats Cast iron
TS max (°C) 70
TS min (°C) -10
Warranty period 2 years
Type of stem Non-rising
Main product colour Blue

Configurations

Product Reference Price Stock
Gate valve 182 NBR wedge PN16 DIN F4 DN40 182040 €155.05
35 pcs available in stock
Gate valve 182 NBR wedge PN16 DIN F4 DN50 182050 €189.05
49 pcs available in stock
Gate valve 182 NBR wedge PN16 DIN F4 DN65 182065 €241.70
15 pcs available in stock
Gate valve 182 NBR wedge PN16 DIN F4 DN80 182080 €300.18
75 pcs available in stock
Gate valve 182 NBR wedge PN16 DIN F4 DN100 182100 €409.00
58 pcs available in stock
Gate valve 182 NBR wedge PN16 DIN F4 DN125 182125 €437.82
40 pcs available in stock
Gate valve 182 NBR wedge PN16 DIN F4 DN150 182150 €686.38
93 pcs available in stock
Gate valve 182 NBR wedge PN10 DIN F4 DN200 182200 €1,101.55
23 pcs available in stock
Gate valve 182 NBR wedge PN16 DIN F4 DN200 182201 €1,101.55
33 pcs available in stock
Gate valve 182 NBR wedge PN10 DIN F4 DN250 182250 €1,636.55
1 pcs available in stock
Gate valve 182 NBR wedge PN16 DIN F4 DN250 182251 €1,636.55
9 pcs available in stock
Gate valve 182 NBR wedge PN10 DIN F4 DN300 182300 €2,140.12
7 pcs available in stock
Gate valve 182 NBR wedge PN16 DIN F4 DN300 182301 €2,140.12
2 pcs available in stock
