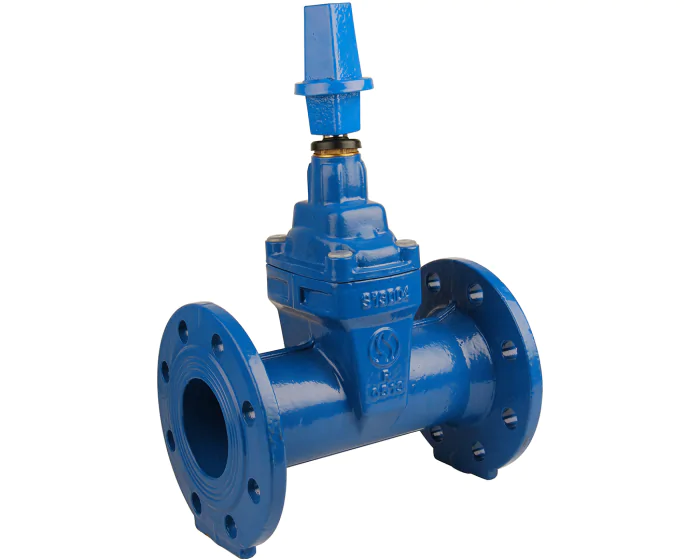

Gate valve 184 EPDM wedge PN10/16 DIN F5

Syveco offers the Sferaco 184 series gate valve, rubber, clockwise closing, EPDM gate, DIN 3202 F5 gap for drinking water, water treatment and supply and irrigation
Choose your configuration
See all configurations
Réf.
CONF184050
(Indicative price) €157.38
Details
Details
Option certificate 3.1 Yes
DN inches NPS 2''
Bonnet material Cast iron EN GJS-500-7
Construction standard DIN EN 1171
Type of paint Epoxy
Paint coating thickness (µm) 250.00
DIN face-to-face standard DIN 3202-1 F5
Face to face standard EN 558 series 15. DIN 3202-1 F5
Tightness test standard EN 12266-1. Rate A
Bonnet Bolted
Closing direction Clockwise closing
Opening device Handwheel
Application Water supply and distribution network
Shaft/stem matérial Stainless steel AISI 420
Torque (Nm) 20.0
Diameter of passage 50.00
Face to Face (mm) 250.0
Kv (m³/h) 229.0
Body material Ductile iron
Gate material Cast iron EN GJS-500-7 + EPDM
Bore Full
PS (bar) 16
RAL (Paint) 5005
Seats Cast iron
TS max (°C) 70
TS min (°C) -10
Warranty period 2 years
Type of stem Non-rising
Main product colour Blue

Configurations

Product Reference Price Stock
Gate valve 184 EPDM wedge PN16 DIN F5 DN40 184040 €157.38
74 pcs available in stock
Gate valve 184 EPDM wedge PN16 DIN F5 DN50 184050 €218.12
34 pcs available in stock
Gate valve 184 EPDM wedge PN16 DIN F5 DN65 184065 €229.38
60 pcs available in stock
Gate valve 184 EPDM wedge PN16 DIN F5 DN80 184080 €274.82
82 pcs available in stock
Gate valve 184 EPDM wedge PN16 DIN F5 DN100 184100 €383.88
75 pcs available in stock
Gate valve 184 EPDM wedge PN16 DIN F5 DN125 184125 €440.62
33 pcs available in stock
Gate valve 184 EPDM wedge PN16 DIN F5 DN150 184150 €650.82
35 pcs available in stock
Gate valve 184 EPDM wedge PN10 DIN F5 DN200 184200 €1,038.62
2 pcs available in stock
Gate valve 184 EPDM wedge PN16 DIN F5 DN200 184201 €1,038.62
18 pcs available in stock
Gate valve 184 EPDM wedge PN10 DIN F5 DN250 184250 €1,636.55
9 pcs available in stock
Gate valve 184 EPDM wedge PN16 DIN F5 DN250 184251 €1,636.55
5 pcs available in stock
Gate valve 184 EPDM wedge PN10 DIN F5 DN300 184300 €2,203.05
4 pcs available in stock
Gate valve 184 EPDM wedge PN16 DIN F5 DN300 184301 €1,573.62
2 pcs available in stock
Gate valve 184 EPDM wedge PN10 DIN F5 DN350 184350 €4,217.30
1 pcs available in stock
Gate valve 184 EPDM wedge PN16 DIN F5 DN350 184351 €4,217.30
3 pcs available in stock
Gate valve 184 EPDM wedge PN10 DIN F5 DN400 184400 €4,406.12
2 pcs available in stock
Gate valve 184 EPDM wedge PN16 DIN F5 DN400 184401 €4,406.12
10 pcs available in stock
