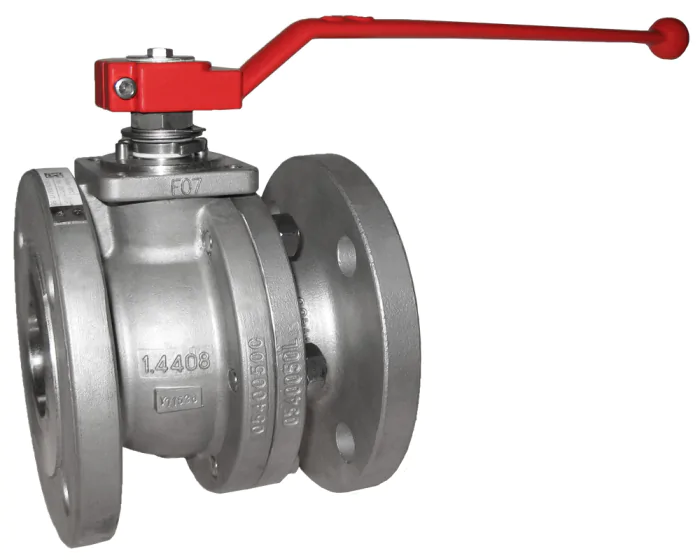

JC Valves 540/516IIS stainless steel ball valve PN16/40
Flanged full bore floating ball valve with split body design and blow-out proof stem. Features anti-static device, cavity pressure relief hole and Fire Safe certification. Designed for reliable industrial shut-off applications.
Details
Flanged ball valve with floating ball
Body in stainless steel 1.4408
Ball in stainless steel A 351 Gr. CF8M
Seats in Stansit
Max. working pressure: 40 bar (DN 15 to DN 50), 16 bar (DN 65 to DN 200)
Face to face: EN558-1 series 27
Connection: flanged PN 16/40 (DN 15 to DN 50), PN 16 (DN 65 to DN 200)
ISO mounting flange
Fire safe according to ISO 10497
With lever in A 216 Gr. WCB (free stem from DN 200)
Details
In categories : Split body
