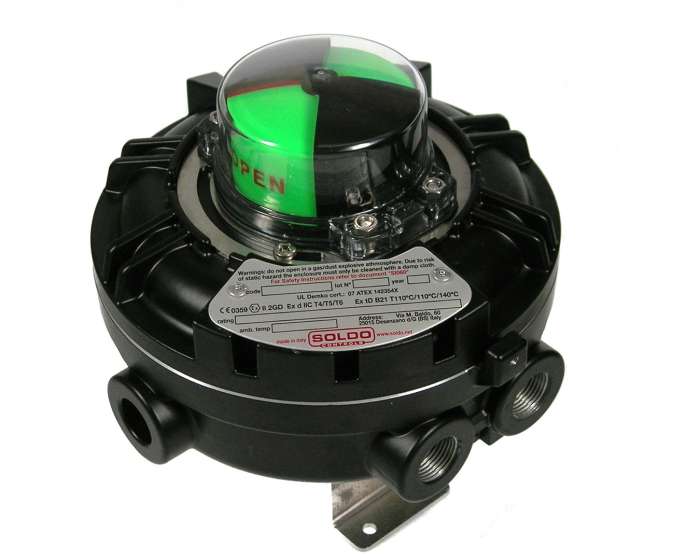

Limit switch box SY IP68 anti-explosion IIC
ATEX II 2 G/D Ex d IIC T6 certified enclosure, polyester coated aluminium body and cap, stainless steel shaft, adjustable 3D position indicator. IP 68. 2 inputs 1/2" NPT or M25x1,5. 2 SPDT mechanical switches or inductive detectors.
Documentation
Data sheet Atex SY type soldo switch boxes
pdf - 310.8 ko
Details
ATEX atmosphere | IIC |
---|---|
ATEX compatible | Yes |
Protection index (IP) | IP 68 |
Body material | Aluminium |
ATEX protection mode | EEx d |
Surface temperature | T4/T6 |
Voltage | 230 V AC |
TS max (°C) | 80 |
TS min (°C) | -20 |
ATEX zone | 1. 2. 21. 22 |
Warranty period | 1 year |
Electrical connection | M25 x 1.5 |
