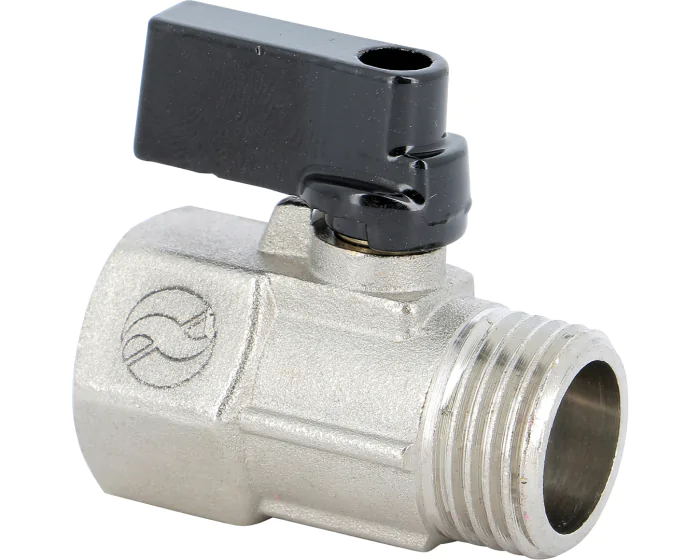

Mini brass ball valve 674 male/female

Discover the 4MS male-male female BSP mini brass ball valve with reduced bore for shut-off of water and compressed air networks. Tightness is ensured by 2 NBR O-rings and the shaft is antiblowout.
Choose your configuration
See all configurations
Réf.
CONF674004
(Indicative price) €7.88
Details
Details
DN metric 15/21
Thread standard ISO 228-1
Stem sealing material NBR double O-ring
Type of coating Nickel-plated
Opening device Handle
Application Heating / Sanitary / Drinking water / Air conditioning / Irrigation
Shaft/stem matérial Brass CW614N
Torque (Nm) 106.4
Diameter of passage 10
DN 15
Face to Face (mm) 43.5
Fluid Cold water
Body material Brass CW617N
Number of ways 2
Bore Reduced
PS (bar) 16
Connections BSP MF
Seats PTFE
Ball material Chrome-plated brass CW614N
TS max (°C) 90
TS min (°C) -10
Warranty period 2 years
Handle material Aluminium
Handle type Black handle

Configurations

Product Reference Price Stock
Mini brass ball valve 674 male/female 1/4'' 674002 €7.88
456 pcs available in stock
Mini brass ball valve 674 male/female 3/8'' 674003 €7.88
3003 pcs available in stock
Mini brass ball valve 674 male/female 1/2'' 674004 €7.88
8811 pcs available in stock
