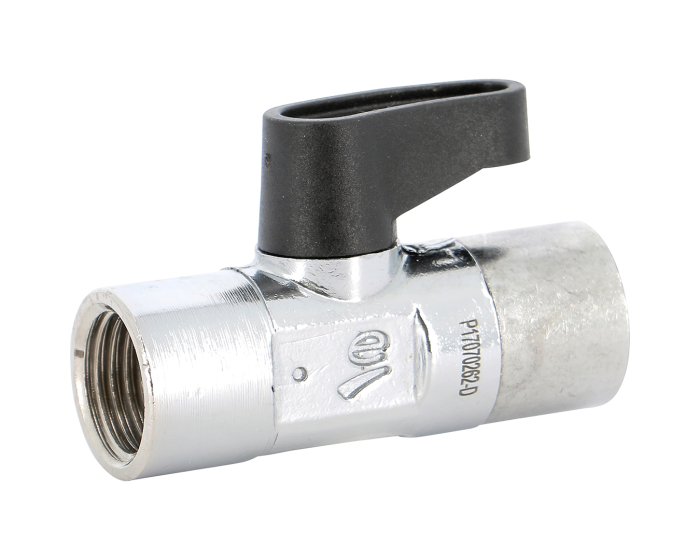

Mini brass ball valve 691 female/female compressed air
Find the micro ball valve brass female BSP with 5.5mm passage for the sectioning of water supply and distribution networks. Tightness is ensured by 1 FKM O-ring and the shaft is anti-blowout stem.
![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/6/9/691-vanne-sphere-laiton-micro-ff-bsp.jpg)
Documentation
Details
DN metric | 5/10 |
---|---|
Thread standard | ISO 228-1 |
Stem sealing material | FKM O-ring |
Type of coating | Nickel-plated |
Opening device | Handle |
Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
Shaft/stem matérial | Brass CW614N |
Diameter of passage | 5.50 |
DN | 5 |
Face to Face (mm) | 39.5 |
Fluid | Cold water |
Body material | Brass CW617N |
Number of ways | 2 |
Bore | Reduced |
PS (bar) | 16 |
Connections | BSP FF |
Seats | PTFE |
Ball material | Chrome-plated brass CW614N |
TS max (°C) | 90 |
TS min (°C) | -10 |
Warranty period | 2 years |
Handle material | Nylon |
Handle type | Black handle |
