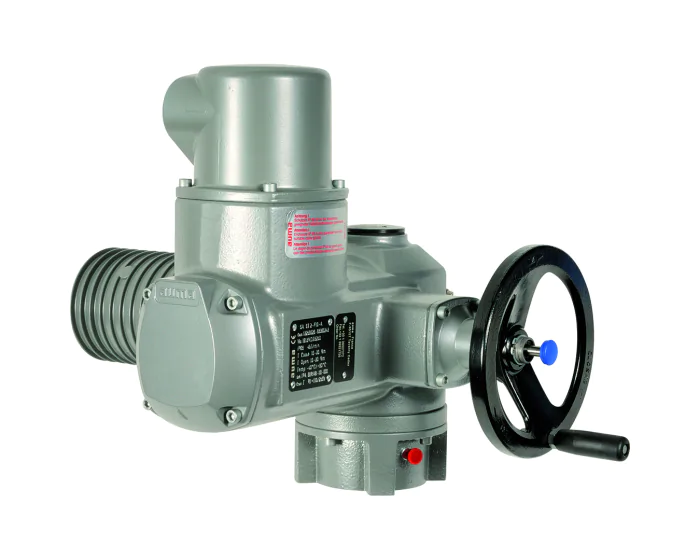

Multi-turn electric actuator for rotating stem linear valves

Electric actuator AUMA SA range, on/off service. Voltage: 230 Vac or 400 V Tri. Service S2 - 15 min. Torque limiter. Manual override.
Choose your configuration
See all configurations
Réf.
CONF027026
(Indicative price) €6,512.38
Details
Details
Manual override By handwheel
Torque (Nm) 60.0
Declutchable Yes
DN 15
Duty service S2 duty service - 15 min
Current (A) 2.0
Protection class (IP) IP 68
Torque limiter Yes
Recommended location Outdoor
ISO pad 5211 F10
Power (W) 200
Anti-condensation heater Standard
Positive safety No
Function On-off
Electric actuator type SA 07.6
Electric actuator series SA series (AUMA)
Voltage 3-400 V
Warranty period 1 year
Electrical connection By gland packing

Configurations

Product Reference Price Stock
Multi-turn electric actuator SA07.6 400V 45rpm 60Nm f/non-rising stem 027026 €6,512.38
1 pcs available in stock
