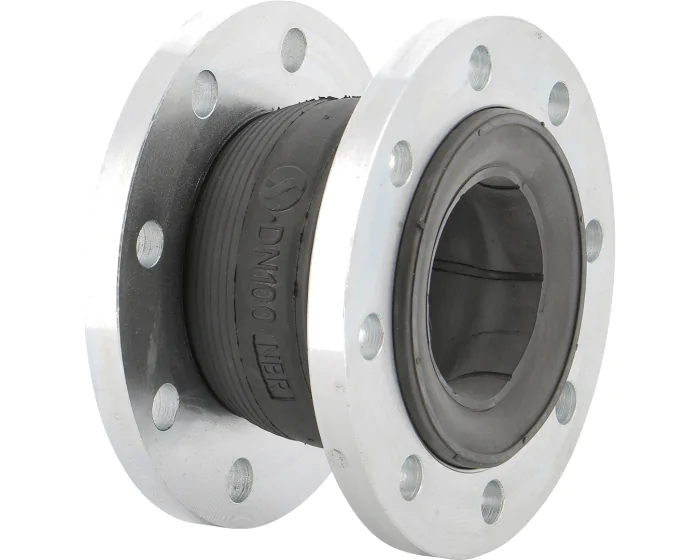

NBR expansion joint 1503 PN10/16
Discover the Sferaco 1503 series elastomeric expansion joint, in steel, with PN10 flanges, with single NBR bellow, vibration absorption for mineral oils, hydrocarbons and fuel oils
Documentation
Certificate of Conformity
pdf - 212.1 ko
Fiche technique manchon compensateur NBR brides PN10/16
pdf - 419.3 ko
Notice montage manchon compensateur à brides
pdf - 626.5 ko
Installation operating manual expansion joint flanged
pdf - 577.7 ko
Technical datasheet expansion joint NBR flanged PN10/16
pdf - 348.1 ko
Details
DN inches NPS | 2'' |
---|---|
Flange or fitting material | Electro-zinc plated steel |
Application | Expansion/Vibration Noise absorption |
Torque (Nm) | 106.4 |
Face to Face (mm) | 105.0 |
Fluid | Hot water / Cold water / Drinking water |
Body material | NBR |
PS (bar) | 16 |
Connections | With rotating flanges PN10/16 |
TS max (°C) | 80 |
TS min (°C) | -10 |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
NBR expansion joint 1503 PN10/16 DN32 | 1503032 | €94.55 |
339 pcs available in stock
|
|
NBR expansion joint 1503 PN10/16 DN40 | 1503040 | €94.55 |
164 pcs available in stock
|
|
NBR expansion joint 1503 PN10/16 DN50 | 1503050 | €94.55 |
294 pcs available in stock
|
|
NBR expansion joint 1503 PN10/16 DN65 | 1503065 | €104.55 |
20 pcs available in stock
|
|
NBR expansion joint 1503 PN10/16 DN80 | 1503080 | €126.60 |
153 pcs available in stock
|
|
NBR expansion joint 1503 PN10/16 DN100 | 1503100 | €147.02 |
2 pcs available in stock
|
|
NBR expansion joint 1503 PN10/16 DN125 | 1503125 | €201.55 |
56 pcs available in stock
|
|
NBR expansion joint 1503 PN10/16 DN150 | 1503150 | €253.90 |
18 pcs available in stock
|
|
NBR expansion joint 1503 PN10/16 DN200 | 1503200 | €398.65 |
46 pcs available in stock
|
