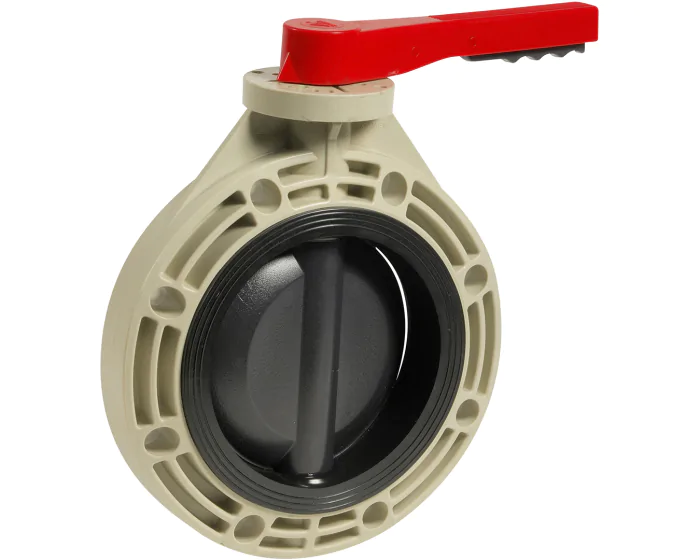

PP butterfly valve PL1

Manual butterfly valve, body and disc in PP, seat in EPDM. PS: 10 bar - TS: +10 / +80°C. Mounting between flanges PN10.
Choose your configuration
See all configurations
Réf.
CONF5310SW050
(Indicative price) €409.38
Details
Details
Option certificate 3.1 No
Shaft/stem matérial Stainless steel 304
ATEX compatible No
Torque (Nm) 106.4
Face to Face (mm) 43.0
Gasket EPDM
Seat EPDM
Body material PP
Number of ways 2
Disc material PPGF
PS (bar) 10
Connections Between flanges PN10
TS max (°C) 80
TS min (°C) 10
Butterfly valve design Concentric
Wafer/lug WAFER
Warranty period 1 year

Configurations

Product Reference Price Stock
PP butterfly valve PL1 DN50 d63 EPDM seat 5310SW050 €409.38
9 pcs available in stock
PP butterfly valve PL1 DN65 d75 EPDM seat 5310SW065 €415.42
9 pcs available in stock
PP butterfly valve PL1 DN80 d90 EPDM seat 5310SW080 €505.12
2 pcs available in stock
PP butterfly valve PL1 DN100 d110 EPDM seat 5310SW100 €512.62
6 pcs available in stock
PP butterfly valve PL1 DN125 d140 EPDM seat 5310SW125 €913.62
1 pcs available in stock
PP butterfly valve PL1 DN150 d160 EPDM seat 5310SW150 €908.68
4 pcs available in stock
PP butterfly valve PL1 DN200 d225 EPDM seat 5310SW200 €1,508.95
2 pcs available in stock
