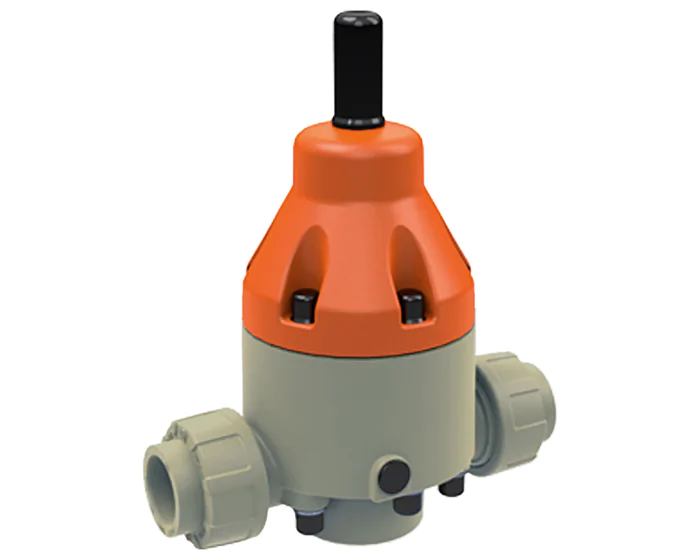

PP pressure reducing valve DMV755 EPDM gaskets
Pressure reducing valve, PP body, EPDM diaphragm with PTFE coating, EPDM gasket. PS: 10 bar - TS: +10 / +70°C. Downstream adjustment range: 1-9 bar.
Documentation
Certificate of Conformity
pdf - 205.8 ko
Data sheet DMV755-PP / gaskets EPDM Pressure reducing valve
pdf - 790.1 ko
Details
Option certificate 3.1 | No |
---|---|
ATEX compatible | No |
Torque (Nm) | 106.4 |
Exhaust system | pipe outlet |
Sealing | EPDM |
Gasket | EPDM |
Body material | PP |
Upstream pressure range (bar) | 0 / 10 |
Downstream pressure range (bar) | 1 / 9 |
PS (bar) | 10 |
TS max (°C) | 70 |
TS min (°C) | 10 |
Warranty period | 1 year |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
PP pressure reducing valve DMV755 DN10 d16 EPDM gaskets | 5810AC010 | €1,312.45 |
Currently not in stock
|
|
PP pressure reducing valve DMV755 DN15 d20 EPDM gaskets | 5810AC015 | €1,325.00 |
Currently not in stock
|
|
PP pressure reducing valve DMV755 DN20 d25 EPDM gaskets | 5810AC020 | €1,621.82 |
Currently not in stock
|
|
PP pressure reducing valve DMV755 DN25 d32 EPDM gaskets | 5810AC025 | €1,439.50 |
1 pcs available in stock
|
|
PP pressure reducing valve DMV755 DN32 d40 EPDM gaskets | 5810AC032 | €1,809.18 |
1 pcs available in stock
|
|
PP pressure reducing valve DMV755 DN40 d50 EPDM gaskets | 5810AC040 | €1,832.92 |
Currently not in stock
|
|
PP pressure reducing valve DMV755 DN50 d63 EPDM gaskets | 5810AC050 | €1,861.98 |
1 pcs available in stock
|
