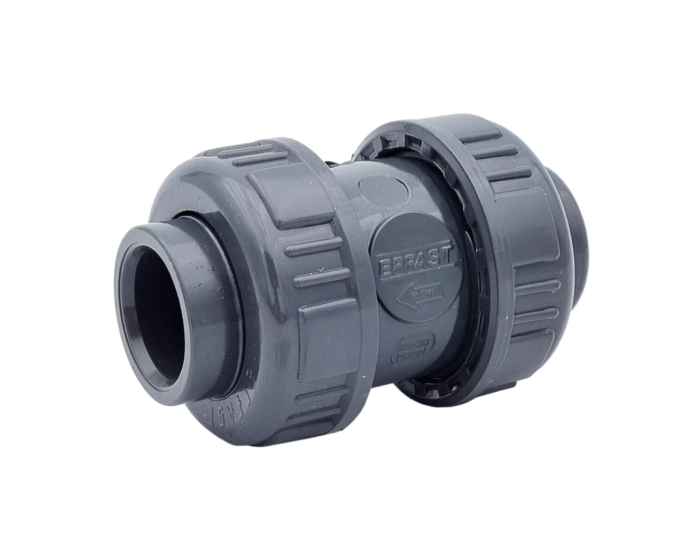

PVC-U Check valves CV1 EPDM seat
Double union check valve designed with PVC-U body and collar. EPDM gasket. PS: 16 bar. TS: 0°C / +60°C. AISI 302 stainless steel spring. Horizontal or vertical mounting. Union fittings with female ends to be glued.
Documentation
Certificate of Conformity
pdf - 204.4 ko
Data sheet CV1-PVCU / Gaskets EPDM double union check valve
pdf - 690.9 ko
Details
Option certificate 3.1 | No |
---|---|
Torque (Nm) | 106.4 |
Face to Face (mm) | 80.0 |
Gasket | EPDM |
Body material | PVC-U |
PS (bar) | 16 |
Connections | Solvent cement socket union |
TS max (°C) | 60 |
TS min (°C) | 0 |
Warranty period | 1 year |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
PVC-U check valve CV1 DN15 d20 EPDM gaskets | 5500SC015EF | €29.78 |
10 pcs available in stock
|
|
PVC-U check valve CV1 DN20 d25 EPDM gaskets | 5500SC020EF | €35.78 |
8 pcs available in stock
|
|
PVC-U check valve CV1 DN25 d32 EPDM gaskets | 5500SC025EF | €38.45 |
13 pcs available in stock
|
|
PVC-U check valve CV1 DN32 d40 EPDM gaskets | 5500SC032EF | €45.10 |
8 pcs available in stock
|
|
PVC-U check valve CV1 DN40 d50 EPDM gaskets | 5500SC040EF | €65.78 |
5 pcs available in stock
|
|
PVC-U check valve CV1 DN50 d63 EPDM gaskets | 5500SC050EF | €88.22 |
4 pcs available in stock
|
