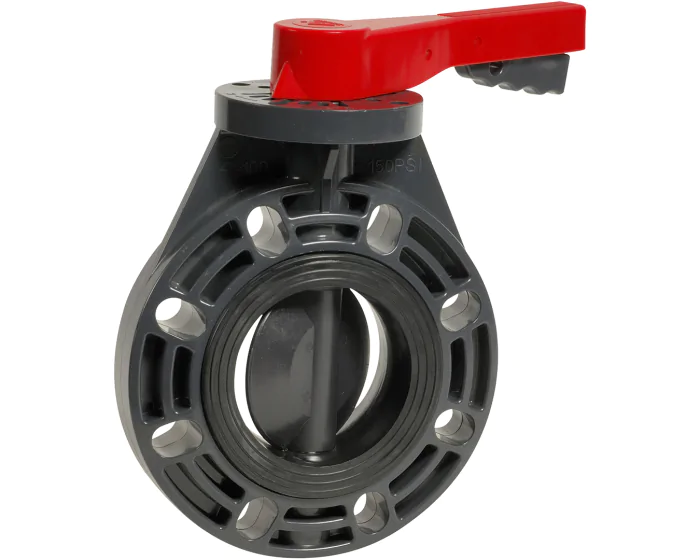

PVC-U/EPDM butterfly valve PL1
Manual butterfly valve with PVC-U body, PP disc and EPDM seat. PS: 10 bar - TS: 0 / +55°C. Mounting between flanges PN10.
Documentation
Certificate of Conformity
pdf - 207.9 ko
Fiche technique Robinet à papillon PL1-PVC-U / joints EPDM
pdf - 516.4 ko
Data sheet butterfly valve PL1-PVC-U / gaskets EPDM
pdf - 513 ko
Details
Option certificate 3.1 | No |
---|---|
Shaft/stem matérial | Stainless steel 304 |
ATEX compatible | No |
Torque (Nm) | 106.4 |
Face to Face (mm) | 34.0 |
Gasket | EPDM |
Seat | EPDM |
Body material | PVC-U |
Number of ways | 2 |
Disc material | PPGF |
PS (bar) | 10 |
Connections | Flanged PN10 |
TS max (°C) | 55 |
TS min (°C) | 0 |
Butterfly valve design | Concentric |
Wafer/lug | WAFER |
Warranty period | 1 year |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
PVC-U butterfly valve PL1 DN40 d50 EPDM seat | 5300SW040 | €240.00 |
3 pcs available in stock
|
|
PVC-U butterfly valve PL1 DN50 d63 EPDM seat | 5300SW050 | €268.05 |
23 pcs available in stock
|
|
PVC-U butterfly valve PL1 DN65 d75 EPDM seat | 5300SW065 | €271.10 |
7 pcs available in stock
|
|
PVC-U butterfly valve PL1 DN80 d90 EPDM seat | 5300SW080 | €432.18 |
13 pcs available in stock
|
|
PVC-U butterfly valve PL1 DN100 d110 EPDM seat | 5300SW100 | €502.50 |
8 pcs available in stock
|
|
PVC-U butterfly valve PL1 DN125 d140 EPDM seat | 5300SW125 | €559.78 |
12 pcs available in stock
|
|
PVC-U butterfly valve PL1 DN150 d160 EPDM seat | 5300SW150 | €611.05 |
2 pcs available in stock
|
|
PVC-U butterfly valve PL1 DN200 d225 EPDM seat | 5300SW200 | €869.60 |
3 pcs available in stock
|
|
PVC-U butterfly valve PL1 DN250 d280 EPDM seat | 5300SW250 | €2,475.00 |
1 pcs available in stock
|
|
PVC-U butterfly valve PL1 DN300 d315 EPDM seat | 5300SW300 | €2,487.50 |
2 pcs available in stock
|
