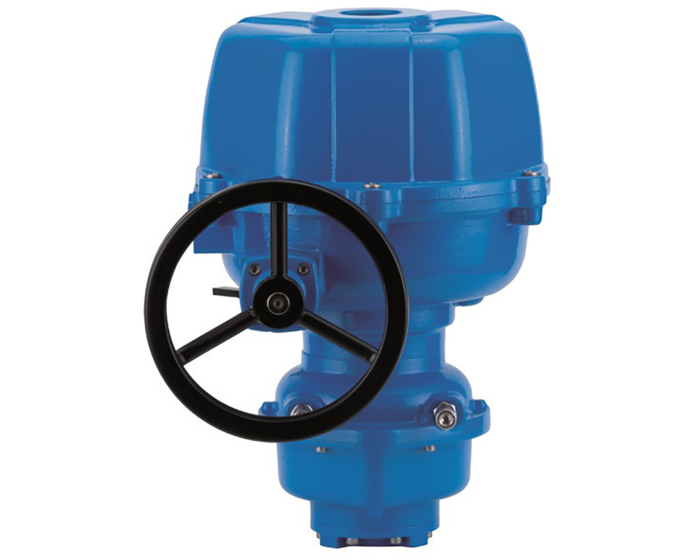

Quarter-turn electric actuator SR05-X
ATEX electric actuator for 1/4 turn valve with spring return in safety position, from 50 to 300 Nm. Aluminium enclosure and cover with IP67 protection. Service S2 - 15 min. ATEX II 2G Ex d IIB T4 certification.
Documentation
Data sheet SR-X ATEX spring return electrical actuator IP67
pdf - 403.9 ko
Details
ATEX atmosphere | IIB |
---|---|
Square, star (mm) | 14 |
Manual override | By handwheel |
Declutchable | Yes |
DN | 15 |
Duty service | S4 duty service - 50% |
Current (A) | 1.9 |
Protection class (IP) | IP 67 |
Torque limiter | No |
Recommended location | Outdoor |
ATEX protection mode | EEx d |
ISO pad 5211 | F7 |
Power (W) | 40 |
Anti-condensation heater | Standard |
Positive safety | Yes |
Function | On-off |
Electric actuator type | SRX-05 |
Electric actuator series | SA-X/NA-X ATEX series |
Spring return time (s) | 1 |
Surface temperature | T4 |
Voltage | 230 V AC |
Positive safety type | Spring return |
ATEX zone | 1. 2 |
Warranty period | 1 year |
Electrical connection | By gland packing ATEX |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Quarter-turn electric actuator SR05-X 230V AC 16/14s 50Nm - ATEX | 023450 | €8,525.00 |
Currently not in stock
|
|
Quarter-turn electric actuator SR10-X 230V AC 20/19s 100Nm - ATEX | 023460 | €8,900.00 |
1 pcs available in stock
|
|
Quarter-turn electric actuator SR30-X 230V AC 89/82s 300Nm - ATEX | 023470 | €17,600.00 |
1 pcs available in stock
|
