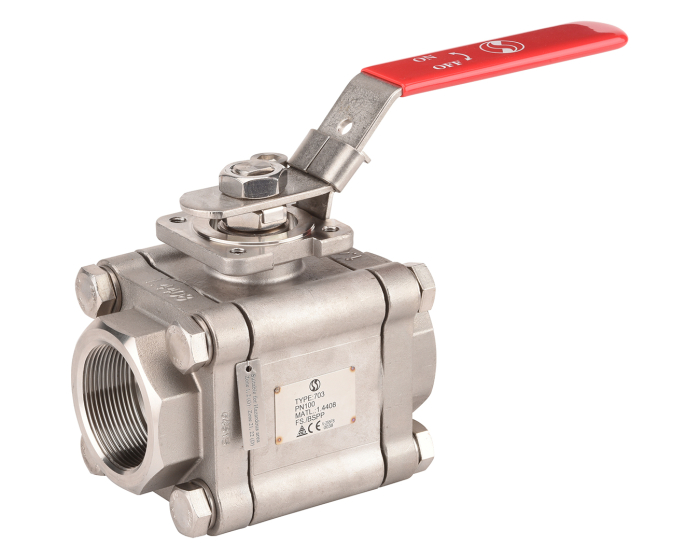

Stainless steel ball valve 703 3-piece body + ISO pad Fire Safe

703 Series is a robust 3-piece body ISO pad and fire-safe ball valve. Ideal for heavy industries, it offers temperature resistance from -30°C to +220°C, 140 bar max pressure, and ATEX compatibility. Sizes 1/4'' to 2''. A reliable choice.
Choose your configuration
See all configurations
Réf.
CONF703004
(Indicative price) €119.80
Details
Details
DN inches NPS 1/2''
Option certificate 3.1 Yes
Construction standard EN 12516-1 - ASME B16.34
CE risk category III Module H
Fire safe standard ISO 10497:2010. API 607 V6
Thread standard ISO 228-1
Tightness test standard EN 12266-1 Rate A
Stem sealing material Graphite gland packing
Antistatic device Yes
Steam Yes
Opening device Handle
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel AISI 316
Lockable Yes
Square, star (mm) MEP Ø9.5x6.5
ATEX compatible Yes
Torque (Nm) 10.0
Diameter of passage 15.00
Face to Face (mm) 995.0
Fluid Hydrocarbons. gas
Kv (m³/h) 31.3
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Bore Full
ISO pad 5211 Yes
Packing gland Yes
PS (bar) 140
Seats PTFE-Carbon
Ball material Stainless steel ASTM A351 CF8M
TS max (°C) 220
TS min (°C) -30
Ball valve design 3-piece body
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
CE Yes
Handle material Stainless steel AISI 304
Handle type Red lever
Fire safe Yes

Configurations

Product Reference Price Stock
Stainless steel ball valve 703 3 piece body 1/4'' 703002 €179.55
73 pcs available in stock
Stainless steel ball valve 703 3 piece body BSP 3/8'' 703003 €182.88
Currently not in stock
Stainless steel ball valve 703 3-piece body BSP 1/2'' 703004 €205.32
19 pcs available in stock
Stainless steel ball valve 703 3 piece body BSP 3/4'' 703005 €252.30
92 pcs available in stock
Stainless steel ball valve 703 3 piece body BSP 1'' 703006 €361.55
Currently not in stock
Stainless steel ball valve 703 3 piece body BSP 1''1/4 703007 €463.32
29 pcs available in stock
Stainless steel ball valve 703 3 piece body BSP 1''1/2 703008 €749.00
109 pcs available in stock
Stainless steel ball valve 703 3 piece body BSP 2'' 703009 €1,152.50
Currently not in stock
Stainless steel ball valve 703 3 piece body BW 1/4'' 703108 €179.55
37 pcs available in stock
Stainless steel ball valve 703 3 piece body BW 3/8'' 703110 €182.88
25 pcs available in stock
Stainless steel ball valve 703 3 piece body BW 1/2'' 703115 €205.32
83 pcs available in stock
Stainless steel ball valve 703 3 piece body BW 3/4'' 703120 €252.30
171 pcs available in stock
Stainless steel ball valve 703 3 piece body BW 1'' 703125 €361.55
156 pcs available in stock
Stainless steel ball valve 703 3 piece body BW 1''1/4 703132 €463.32
52 pcs available in stock
Stainless steel ball valve 703 3 piece body BW 1''1/2 703140 €749.00
125 pcs available in stock
Stainless steel ball valve 703 3 piece body BW 2'' 703150 €1,152.50
13 pcs available in stock
Stainless steel ball valve 703 3 piece body SW 1/4'' 703208 €179.55
75 pcs available in stock
Stainless steel ball valve 703 3 piece body SW 3/8'' 703210 €119.80
46 pcs available in stock
Stainless steel ball valve 703 3 piece body SW 1/2'' 703215 €205.32
480 pcs available in stock
Stainless steel ball valve 703 3 piece body SW 3/4'' 703220 €252.30
200 pcs available in stock
Stainless steel ball valve 703 3 piece body SW 1'' 703225 €361.55
158 pcs available in stock
Stainless steel ball valve 703 3 piece body SW 1''1/4 703232 €463.32
24 pcs available in stock
Stainless steel ball valve 703 3 piece body SW 1''1/2 703240 €749.00
167 pcs available in stock
Stainless steel ball valve 703 3 piece body SW 2'' 703250 €1,152.50
26 pcs available in stock
Stainless steel ball valve 703 3 piece body NPT 1/4'' 703302 €179.55
127 pcs available in stock
Stainless steel ball valve 703 3 piece body NPT 3/8'' 703303 €182.88
7 pcs available in stock
Stainless steel ball valve 703 3 piece body NPT 1/2'' 703304 €205.32
373 pcs available in stock
Stainless steel ball valve 703 3 piece body NPT 3/4'' 703305 €252.30
37 pcs available in stock
Stainless steel ball valve 703 3 piece body NPT 1'' 703306 €361.55
166 pcs available in stock
Stainless steel ball valve 703 3 piece body NPT 1''1/4 703307 €463.32
57 pcs available in stock
Stainless steel ball valve 703 3 piece body NPT 1''1/2 703308 €749.00
23 pcs available in stock
Stainless steel ball valve 703 3 piece body NPT 2'' 703309 €1,152.50
Currently not in stock
