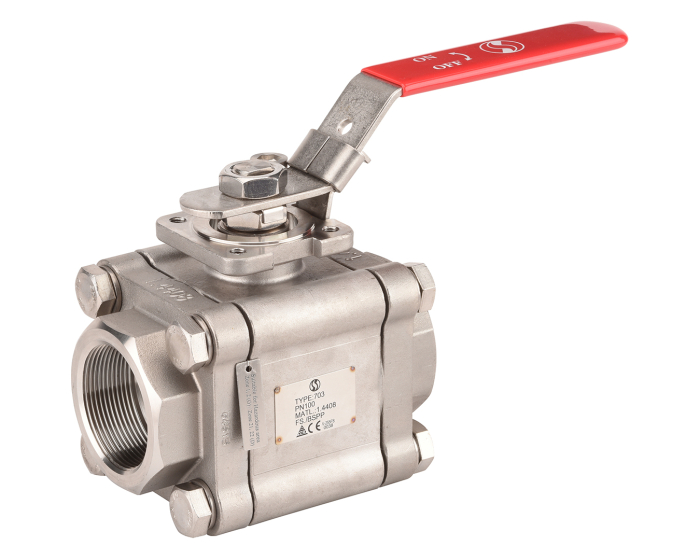

Stainless steel ball valve 703R 3-piece body + ISO pad Fire Safe

703R Series is a robust 3-piece body ISO pad and fire-safe ball valve. Ideal for heavy industries, it offers temperature resistance from -30°C to +220°C, 140 bar max pressure, and ATEX compatibility. Sizes 1/4'' to 2'', reduced bore.
Choose your configuration
See all configurations
Réf.
CONF703R004
(Indicative price) €182.90
Details
Details
DN inches NPS 1/2''
Option certificate 3.1 Yes
Construction standard EN 12516-1 - ASME B16.34
CE risk category III Module H
Fire safe standard ISO 10497:2010. API 607 V6
Thread standard ISO 228-1
Tightness test standard EN 12266-1 Rate A
Stem sealing material Graphite gland packing
Antistatic device Yes
Steam Yes
Opening device Handle
Application Industry
Diameter of passage 10.00
Face to Face (mm) 860.0
Fluid Hydrocarbons. gas
Kv (m³/h) 13.4
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Bore Reduced
ISO pad 5211 Yes
Packing gland Yes
PS (bar) 140
TS max (°C) 220
TS min (°C) -30
Ball valve design 3-piece body
ATEX zone 1 & 21. 2 & 22
CE Yes
Handle type Red lever
Fire safe Yes

Configurations

Product Reference Price Stock
Produit
Stainless steel ball valve 703R 3-piece body BSP 1/2''
Produit
Stainless steel ball valve 703R 3 piece body BSP 3/4''
Produit
Stainless steel ball valve 703R 3 piece body BSP 1''
Produit
Stainless steel ball valve 703R 3 piece body BSP 1''1/4
Produit
Stainless steel ball valve 703R 3 piece body BSP 1''1/2
Produit
Stainless steel ball valve 703R 3 piece body BSP 2''
Produit
Stainless steel ball valve 703R 3 piece body BW 1/2''
Produit
Stainless steel ball valve 703R 3 piece body BW 3/4''
Produit
Stainless steel ball valve 703R 3 piece body BW 1''
Produit
Stainless steel ball valve 703R 3 piece body BW 1''1/4
Produit
Stainless steel ball valve 703R 3 piece body BW 1''1/2
Produit
Stainless steel ball valve 703R 3 piece body BW 2''
Produit
Stainless steel ball valve 703R 3 piece body SW 1/2''
Produit
Stainless steel ball valve 703R 3 piece body SW 3/4''
Produit
Stainless steel ball valve 703R 3 piece body SW 1''
Produit
Stainless steel ball valve 703R 3 piece body SW 1''1/4
Produit
Stainless steel ball valve 703R 3 piece body SW 1''1/2
Produit
Stainless steel ball valve 703R 3 piece body SW 2''
Produit
Stainless steel ball valve 703R 3 piece body NPT 1/2''
Produit
Stainless steel ball valve 703R 3 piece body NPT 3/4''
Produit
Stainless steel ball valve 703R 3 piece body NPT 1''
Produit
Stainless steel ball valve 703R 3 piece body NPT 1''1/4
Produit
Stainless steel ball valve 703R 3 piece body NPT 1''1/2
Produit
Stainless steel ball valve 703R 3 piece body NPT 2''

24 Item(s)
