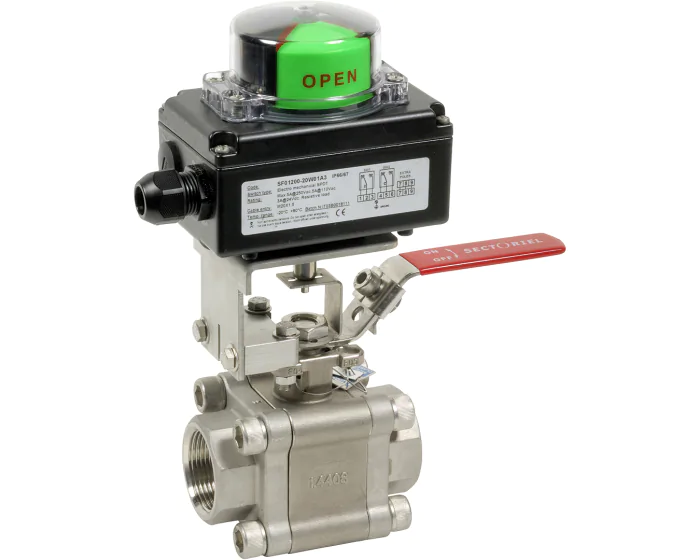

Stainless steel ball valve 703XS 3-piece body HT + limit switch box

Stainless steel body and ball 1.4408, PTFE/glass seats, full bore. PS : 137 bar- TS : -30/+180°C. Fire safe. Threaded G or welding BW connections. Limit switch box SF012, 2 dry contacts SPDT.
Choose your configuration
See all configurations
Réf.
CONF2713720462012
(Indicative price) €1,037.95
Details
Details
Option certificate 3.1 Yes
Shaft/stem matérial Stainless steel 316
Switch type dry SPDT
Torque (Nm) 106.4
DN 1/2''
Face to Face (mm) 75.0
3D indicator Yes
Protection class (IP) IP 67
Body material Stainless steel CF8M (1.4408)
Number of ways 2
PS (bar) 137
Connections BSP FF
Seats PTFE-Stainless steel
TS max (°C) 220
TS min (°C) -20
Ball valve design 3-piece body
Warranty period 1 year
Electrical connection Per gland packing M20 x 1.5

Configurations

Product Reference Price Stock
Stainless steel ball valve 703XS body HT + limit switch box BSP - 1/2'' 2713720462012 €1,037.95
24 pcs available in stock
Stainless steel ball valve 703XS body HT + limit switch box BSP - 3/4'' 2713730462012 €1,084.82
24 pcs available in stock
Stainless steel ball valve 703XS body HT + limit switch box BSP - 1'' 2713740462012 €1,105.05
9 pcs available in stock
Stainless steel ball valve 703XS body HT + limit switch box BSP - 1''1/4 2713750462012 €1,242.32
9 pcs available in stock
Stainless steel ball valve 703XS body HT + limit switch box BSP - 1''1/2 2713760462012 €1,342.38
11 pcs available in stock
Stainless steel ball valve 703XS body HT + limit switch box BSP - 2'' 2713770462012 €1,837.92
12 pcs available in stock
Stainless steel ball valve 703XS body HT + limit switch box BW - 1/2'' 2713820462012 €1,037.95
24 pcs available in stock
Stainless steel ball valve 703XS body HT + limit switch box BW - 3/4'' 2713830462012 €1,084.82
10 pcs available in stock
Stainless steel ball valve 703XS body HT + limit switch box BW - 1'' 2713840462012 €1,105.05
9 pcs available in stock
Stainless steel ball valve 703XS body HT + limit switch box BW - 1''1/4 2713850462012 €1,242.32
2 pcs available in stock
Stainless steel ball valve 703XS body HT + limit switch box BW - 1''1/2 2713860462012 €1,342.38
20 pcs available in stock
Stainless steel ball valve 703XS body HT + limit switch box BW - 2'' 2713870462012 €1,837.92
5 pcs available in stock
