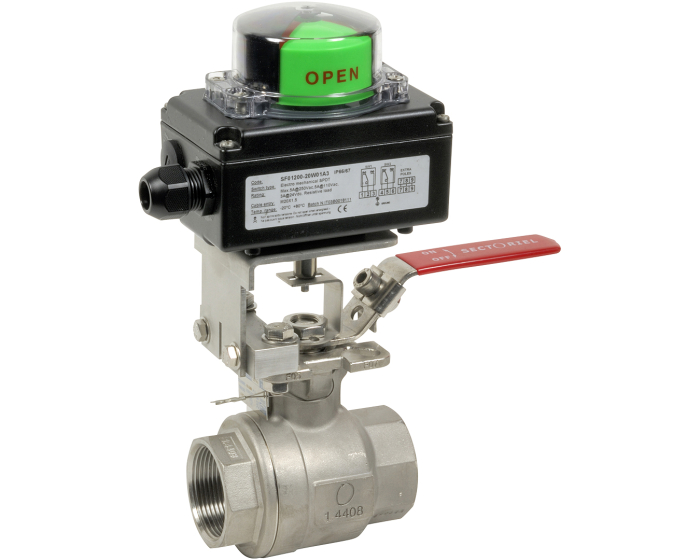

Stainless steel ball valve 715XS 2-piece body BSP + limit switch box
Stainless steel body and ball 1.4408, PTFE/glass seats, full bore. PS: 63 bar- TS: -30/+180°C. G threaded fittings. Limit switch box SF012, 2 dry contacts SPDT.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Shaft/stem matérial | Stainless steel 316 |
| Switch type | dry SPDT |
| Torque (Nm) | 106.4 |
| Face to Face (mm) | 55.0 |
| 3D indicator | Yes |
| Protection class (IP) | IP 67 |
| Gasket | PTFE |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| PS (bar) | 63 |
| Connections | BSP FF |
| Seats | PTFE-Glass |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| Electrical connection | Per gland packing M20 x 1.5 |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Stainless steel ball valve 715XS body BSP + limit switch box 1/2'' | 2724020462012 | €857.50 |
8 pcs available in stock
|
|
| Stainless steel ball valve 715XS body BSP + limit switch box 3/4'' | 2724030462012 | €875.00 |
8 pcs available in stock
|
|
| Stainless steel ball valve 715XS body BSP + limit switch box 1'' | 2724040462012 | €925.00 |
8 pcs available in stock
|
|
| Stainless steel ball valve 715XS body BSP + limit switch box 1''1/4 | 2724050462012 | €939.40 |
20 pcs available in stock
|
|
| Stainless steel ball valve 715XS body BSP + limit switch box 1''1/2 | 2724060462012 | €1,054.25 |
20 pcs available in stock
|
|
| Stainless steel ball valve 715XS body BSP + limit switch box 2'' | 2724070462012 | €1,206.48 |
20 pcs available in stock
|
