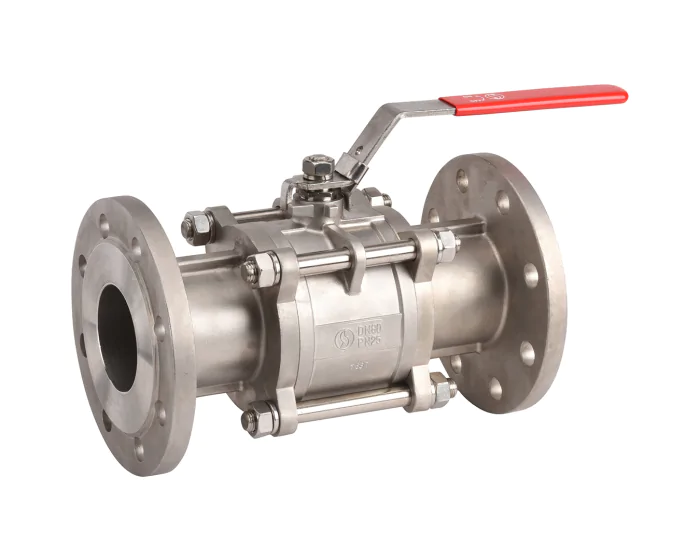

Stainless steel ball valve 731 3-piece body RF PN40

Discover the 731 series ball valve from the Sferaco initial range, 3-piece body with flanges PN40 in stainless steel, with ball and anti-blowout stem, PTFE seats, padlockable handle for industries
Choose your configuration
See all configurations
Réf.
CONF731050
(Indicative price) €120.73
Details
Details
DN inches NPS 2''
Option certificate 3.1 Yes
CE risk category III Module H
EN face-to-face standard EN 558 Series 1
DIN face-to-face standard DIN 3202 F1
Face to face standard EN 558 Series 1. DIN 3202 F1
Tightness test standard API 598
Stem sealing material PTFE gland packing
Opening device Handle
Application Industry
Shaft/stem matérial Stainless steel AISI 316
Lockable Yes
Torque (Nm) 16.0
Diameter of passage 50.00
Face to Face (mm) 2185.0
Fluid Hydrocarbons. gas
Kv (m³/h) 208.4
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Bore Full
ISO pad 5211 No
Packing gland Yes
PS (bar) 40
Connections Flanged PN10/40
Seats PTFE-Glass
Ball material Stainless steel AISI 316
TS max (°C) 180
TS min (°C) -20
Ball valve design flanged 3-piece body
Warranty period 2 years
CE Yes
Handle material Stainless steel AISI 304
Handle type Red lever

Configurations

Product Reference Price Stock
Stainless steel ball valve 731 3 piece body RF PN40 DN15 731015 €120.72
64 pcs available in stock
Stainless steel ball valve 731 3 piece body RF PN40 DN20 731020 €174.68
69 pcs available in stock
Stainless steel ball valve 731 3 piece body RF PN40 DN25 731025 €218.30
158 pcs available in stock
Stainless steel ball valve 731 3 piece body RF PN40 DN32 731032 €346.05
90 pcs available in stock
Stainless steel ball valve 731 3 piece body RF PN40 DN40 731040 €417.92
76 pcs available in stock
Stainless steel ball valve 731 3-piece body RF PN40 DN50 731050 €548.85
162 pcs available in stock
Stainless steel ball valve 731 3 piece body RF PN40 DN65 731065 €924.48
52 pcs available in stock
Stainless steel ball valve 731 3 piece body RF PN40 DN80 731080 €1,242.40
43 pcs available in stock
Stainless steel ball valve 731 3 piece body RF PN40 DN100 731100 €1,908.62
22 pcs available in stock
