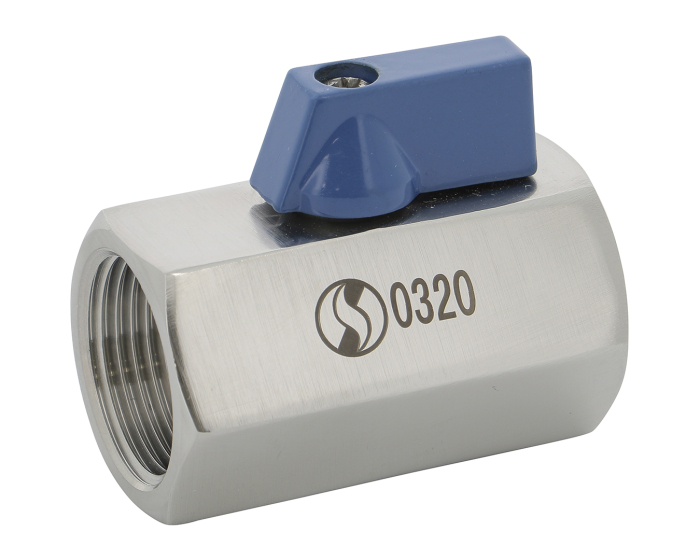

Stainless steel ball valve 732FF BSP female/female

Syveco offers the 1 piece body polished stainless steel reduced bore mini ball valve, female BSP
Choose your configuration
See all configurations
Réf.
CONF732FF004
(Indicative price) €20.55
Details
Details
Option certificate 3.1 Yes
Thread standard ISO 228-1
Opening device Lever
Application Industry
Torque (Nm) 106.4
Diameter of passage 9.20
DN 15
Face to Face (mm) 520.0
Fluid Acids
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Bore Reduced
PS (bar) 63
Connections BSP FF
Seats PTFE
TS max (°C) 180
TS min (°C) -20
Warranty period 2 years
Handle type Blue handle

Configurations

Product Reference Price Stock
Stainless steel ball valve 732FF 1 piece body BSP 1/8'' 732FF001 €20.55
268 pcs available in stock
Stainless steel ball valve 732FF 1 piece body BSP 1/4'' 732FF002 €20.55
795 pcs available in stock
Stainless steel ball valve 732FF 1 piece body BSP 3/8'' 732FF003 €20.62
196 pcs available in stock
Stainless steel ball valve 732FF 1 piece body BSP 1/2'' 732FF004 €24.05
Currently not in stock
Stainless steel ball valve 732FF 1 piece body BSP 3/4'' 732FF005 €31.50
219 pcs available in stock
Stainless steel ball valve 732FF 1 piece body BSP 1'' 732FF006 €47.20
582 pcs available in stock
