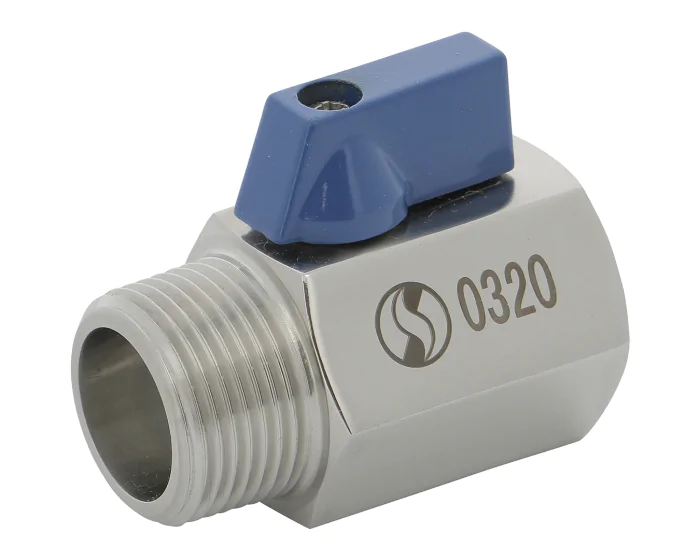

Stainless steel ball valve 732MF BSP male/female

Syveco offers the 1 piece body polished stainless steel mini ball valve with reduced bore, BSP male-male
Choose your configuration
See all configurations
Réf.
CONF732MF004
(Indicative price) €20.55
Details
Details
DN inches NPS 1/2''
Option certificate 3.1 Yes
Thread standard ISO 7-1 R/ISO 228-1
Opening device Lever
Application Industry
Torque (Nm) 106.4
Diameter of passage 9.20
DN 15
Face to Face (mm) 520.0
Fluid Acids
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Bore Reduced
PS (bar) 63
Connections BSP MF
Seats PTFE
TS max (°C) 180
TS min (°C) -20
Warranty period 2 years
Handle type Blue handle

Configurations

Product Reference Price Stock
Stainless steel ball valve 732MF 1 piece body BSP 1/8'' 732MF001 €20.55
356 pcs available in stock
Stainless steel ball valve 732MF 1 piece body BSP 1/4'' 732MF002 €20.55
1369 pcs available in stock
Stainless steel ball valve 732MF 1 piece body BSP 3/8'' 732MF003 €20.62
233 pcs available in stock
Stainless steel ball valve 732MF 1 piece body BSP 1/2'' 732MF004 €24.05
1456 pcs available in stock
Stainless steel ball valve 732MF 1 piece body BSP 3/4'' 732MF005 €31.50
408 pcs available in stock
Stainless steel ball valve 732MF 1 piece body BSP 1'' 732MF006 €47.20
Currently not in stock
