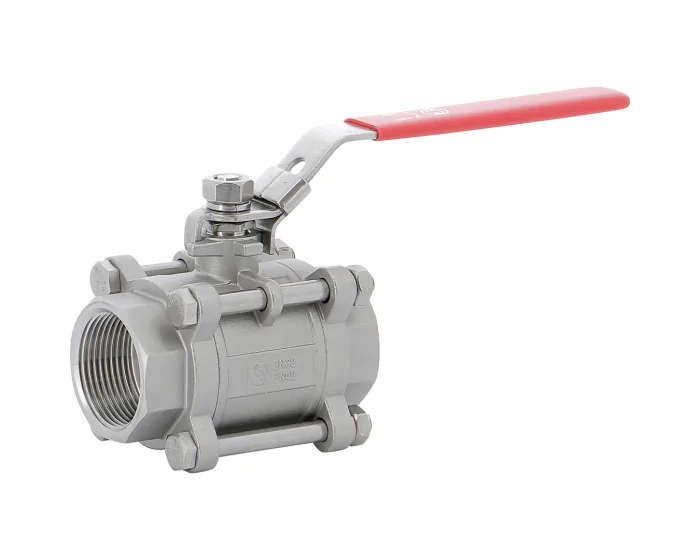

Stainless steel ball valve 744 3-piece body NPT

Stainless steel ball valve 744 3-piece body NPT 1/2"
Choose your configuration
See all configurations
Réf.
CONF744004
(Indicative price) €23.70
Details
Details
DN inches NPS 1/2''
Option certificate 3.1 Yes
CE risk category III Module H
Thread standard ANSI B1.20.1
Tightness test standard API 598
Stem sealing material PTFE gland packing
Opening device Handle
Application Industry
Shaft/stem matérial Stainless steel AISI 316
Lockable Yes
Torque (Nm) 2.5
Diameter of passage 15.00
Face to Face (mm) 830.0
Fluid Hydrocarbons. gas
Kv (m³/h) 20.7
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Bore Full
ISO pad 5211 No
Packing gland Yes
PS (bar) 63
Connections NPT FF
Seats PTFE-Glass
Ball material Stainless steel AISI 316
TS max (°C) 180
TS min (°C) -20
Ball valve design 3-piece body
Warranty period 2 years
CE Yes
Handle material Stainless steel AISI 304
Handle type Red lever

Configurations

Product Reference Price Stock
Produit
Stainless steel ball valve 744 3 piece body NPT 1/4''
Produit
Stainless steel ball valve 744 3 piece body NPT 3/8''
Produit
Stainless steel ball valve 744 3-piece body NPT 1/2''
Produit
Stainless steel ball valve 744 3 piece body NPT 3/4''
Produit
Stainless steel ball valve 744 3 piece body NPT 1''
Produit
Stainless steel ball valve 744 3 piece body NPT 1''1/4
Produit
Stainless steel ball valve 744 3 piece body NPT 1''1/2
Produit
Stainless steel ball valve 744 3 piece body NPT 2''
Produit
Stainless steel ball valve 744 3 piece body NPT 2''1/2
Produit
Stainless steel ball valve 744 3 piece body NPT 3''
Produit
Stainless steel ball valve 744 3 piece body NPT 4''

11 Item(s)
