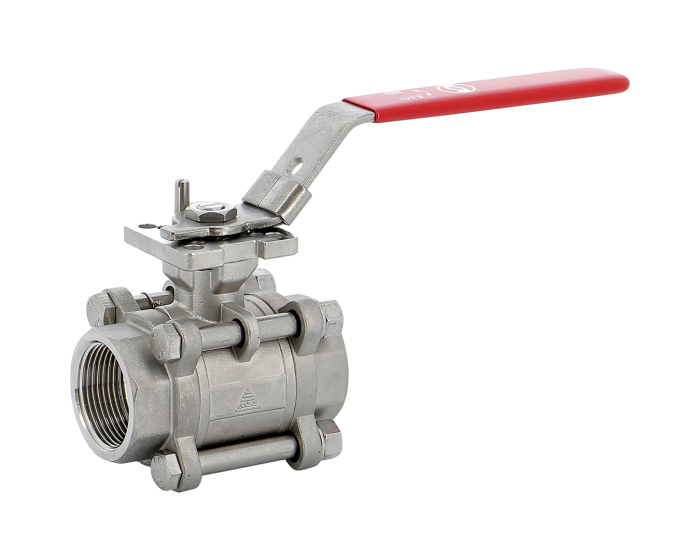

Stainless steel ball valve 747 3-piece body BSP + ISO pad
Discover the 747 series ball valve from the Sferaco performance range, 3-piece body in stainless steel with ISO pad PN63, BSP female/female fitting, full bore, for chemical networks, petrochemical industries
Documentation
Certificate of Conformity
pdf - 214.8 ko
Notice montage robinet à tournant sphérique 3 pièces
pdf - 138.8 ko
Installation operating manual ball valve 3 pieces
pdf - 115.3 ko
Details
DN inches NPS | 1''1/4 |
---|---|
Option certificate 3.1 | Yes |
Construction standard | EN 12516 - ASME B16.34 |
CE risk category | III Module H |
Thread standard | ISO 228-1 |
Tightness test standard | EN 12266-1 Rate A |
Stem sealing material | 25% Graphite filled PTFE gland packing |
Antistatic device | Yes |
Steam | Yes |
Opening device | Handle |
Application | Industry |
ATEX atmosphere | Group II Cat. 2G/2D |
Shaft/stem matérial | Stainless steel AISI 316 |
Lockable | Yes |
Square, star (mm) | Square 9 mm |
ATEX compatible | Yes |
Torque (Nm) | 25.0 |
Diameter of passage | 32.00 |
Face to Face (mm) | 1325.0 |
Fluid | Hydrocarbons. gas |
Kv (m³/h) | 157.9 |
Body material | Stainless steel CF8M (1.4408) |
Number of ways | 2 |
Bore | Full |
ISO pad 5211 | Yes |
Packing gland | Yes |
PS (bar) | 63 |
Connections | BSP FF |
Seats | PTFE-Stainless steel |
Ball material | Stainless steel ASTM A351 CF8M |
TS max (°C) | 220 |
TS min (°C) | -30 |
Ball valve design | 3-piece body |
ATEX zone | 1 & 21. 2 & 22 |
Warranty period | 2 years |
CE | Yes |
Handle material | Stainless steel AISI 304 |
Handle type | Red lever |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Stainless steel ball valve 747 3 piece body BSP + ISO pad 1/4'' | 747002 | €114.12 |
114 pcs available in stock
|
|
Stainless steel ball valve 747 3 piece body BSP + ISO pad 3/8'' | 747003 | €121.55 |
114 pcs available in stock
|
|
Stainless steel ball valve 747 3 piece body BSP + ISO pad 1/2'' | 747004 | €130.70 |
483 pcs available in stock
|
|
Stainless steel ball valve 747 3 piece body BSP + ISO pad 3/4'' | 747005 | €133.88 |
78 pcs available in stock
|
|
Stainless steel ball valve 747 3 piece body BSP + ISO pad 1'' | 747006 | €232.45 |
57 pcs available in stock
|
|
Stainless steel ball valve 747 3-piece body BSP + ISO pad 1''1/4 | 747007 | €288.95 |
200 pcs available in stock
|
|
Stainless steel ball valve 747 3 piece body BSP + ISO pad 1''1/2 | 747008 | €383.55 |
29 pcs available in stock
|
|
Stainless steel ball valve 747 3 piece body BSP + ISO pad 2'' | 747009 | €488.55 |
108 pcs available in stock
|
|
Stainless steel ball valve 747 3 piece body BSP + ISO pad 2''1/2 | 747010 | €928.70 |
Currently not in stock
|
|
Stainless steel ball valve 747 3 piece body BSP + ISO pad 3'' | 747011 | €1,355.88 |
12 pcs available in stock
|
|
Stainless steel ball valve 747 3 piece body BSP + ISO pad 4'' | 747012 | €2,277.30 |
1 pcs available in stock
|
