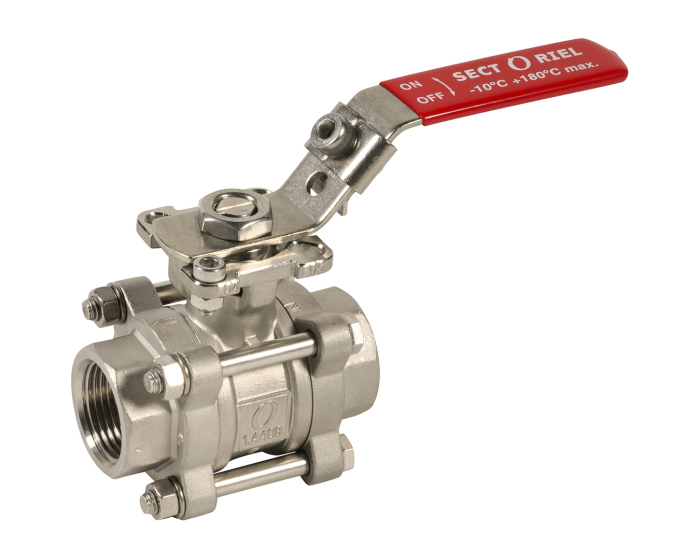

Stainless steel ball valve 747-8-9XS 3-piece body BSP BW SW

CF8M (1.4408) stainless steel body, ball and shaft. Seats: PTFE/stainless steel. Steam service: PS: 15 bar - TS: 200°C.
Choose your configuration
See all configurations
Réf.
CONF272702
(Indicative price) €139.03
Details
Details
Option certificate 3.1 Yes
Shaft/stem matérial Stainless steel 316
Torque (Nm) 106.4
Face to Face (mm) 75.0
Body material Stainless steel CF8M (1.4408)
PS (bar) 63
Seats PTFE-Stainless steel
TS max (°C) 220
TS min (°C) -40
ATEX zone 1.21.2.22
Warranty period 1 year
CE Risk category III

Configurations

Product Reference Price Stock
Stainless steel ball valve 747XS 3-piece body BSP + ISO pad 1/2'' 272702 €139.02
59 pcs available in stock
Stainless steel ball valve 747XS 3 piece body BSP + ISO pad 3/4'' 272703 €178.10
28 pcs available in stock
Stainless steel ball valve 747XS 3 piece body BSP + ISO pad 1'' 272704 €235.82
43 pcs available in stock
Stainless steel ball valve 747XS 3 piece body BSP + ISO pad 1''1/4 272705 €311.68
11 pcs available in stock
Stainless steel ball valve 747XS 3 piece body BSP + ISO pad 1''1/2 272706 €474.00
12 pcs available in stock
Stainless steel ball valve 747XS 3 piece body BSP + ISO pad 2'' 272707 €600.00
2 pcs available in stock
Stainless steel ball valve 748XS 3 piece body BW + ISO pad 3/4'' 272732 €139.02
2 pcs available in stock
Stainless steel ball valve 748XS 3 piece body BW + ISO pad 1'' 272733 €178.10
Currently not in stock
Stainless steel ball valve 748XS 3 piece body BW + ISO pad 1/2'' 272734 €235.82
42 pcs available in stock
Stainless steel ball valve 748XS 3 piece body BW + ISO pad 1''1/4 272735 €311.68
7 pcs available in stock
Stainless steel ball valve 748XS 3 piece body BW + ISO pad 1''1/2 272736 €474.00
15 pcs available in stock
Stainless steel ball valve 748XS 3 piece body BW + ISO pad 2'' 272737 €600.00
9 pcs available in stock
Stainless steel ball valve 749XS 3 piece body SW + ISO pad 1/2'' 272752 €139.02
5 pcs available in stock
Stainless steel ball valve 749XS 3 piece body SW + ISO pad 3/4'' 272753 €178.10
12 pcs available in stock
Stainless steel ball valve 749XS 3 piece body SW + ISO pad 1'' 272754 €235.82
11 pcs available in stock
Stainless steel ball valve 749XS 3 piece body SW + ISO pad 1''1/4 272755 €311.68
14 pcs available in stock
Stainless steel ball valve 749XS 3 piece body SW + ISO pad 1''1/2 272756 €474.00
6 pcs available in stock
Stainless steel ball valve 749XS 3 piece body SW + ISO pad 2'' 272757 €600.00
1 pcs available in stock
