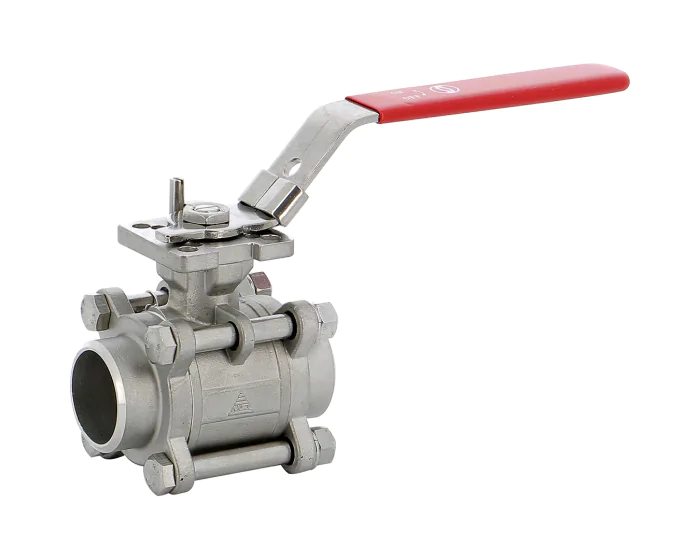

Stainless steel ball valve 748 3-piece body BW + ISO pad

The 748 series ball valve , 3-piece body in stainless steel with ISO pad PN63, BW welding, full bore, for chemical networks, petrochemical industries.
Choose your configuration
See all configurations
Réf.
CONF748015
(Indicative price) €108.65
Details
Details
DN inches NPS 1/2''
Option certificate 3.1 Yes
Construction standard EN 12516 - ASME B16.34
CE risk category III Module H
Tightness test standard EN 12266-1 Rate A
Stem sealing material 25% Graphite filled PTFE gland packing
Antistatic device Yes
Steam Yes
Opening device Handle
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel AISI 316
Lockable Yes
Square, star (mm) Square 9 mm
ATEX compatible Yes
Torque (Nm) 7.6
Diameter of passage 15.00
Face to Face (mm) 840.0
Fluid Hydrocarbons. gas
Kv (m³/h) 31.3
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Bore Full
ISO pad 5211 Yes
Packing gland Yes
PS (bar) 63
Connections Welding BW
Seats PTFE-Stainless steel
Ball material Stainless steel ASTM A351 CF8M
TS max (°C) 220
TS min (°C) -30
Ball valve design 3-piece body
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
CE Yes
Handle material Stainless steel AISI 304
Handle type Red lever

Configurations

Product Reference Price Stock
Produit
Stainless steel ball valve 748 3 piece body BW + ISO pad 1/4''
Produit
Stainless steel ball valve 748 3 piece body BW + ISO pad 3/8''
Produit
Stainless steel ball valve 748 3-piece body BW + ISO pad 1/2''
Produit
Stainless steel ball valve 748 3 piece body BW + ISO pad 3/4''
Produit
Stainless steel ball valve 748 3 piece body BW + ISO pad 1''
Produit
Stainless steel ball valve 748 3 piece body BW + ISO pad 1''1/4
Produit
Stainless steel ball valve 748 3 piece body BW + ISO pad 1''1/2
Produit
Stainless steel ball valve 748 3 piece body BW + ISO pad 2''
Produit
Stainless steel ball valve 748 3 piece body BW + ISO pad 2''1/2
Produit
Stainless steel ball valve 748 3 piece body BW + ISO pad 3''
Produit
Stainless steel ball valve 748 3 piece body BW + ISO pad 4''

11 Item(s)
