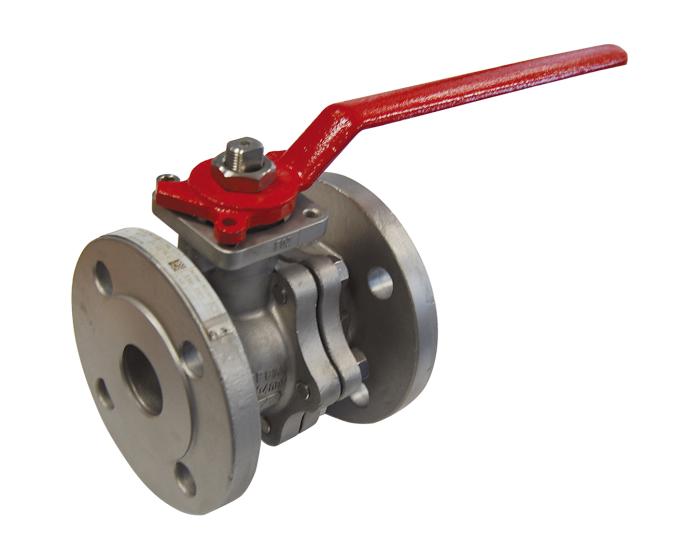

Stainless steel ball valve 753 2 piece body RF PN16

The 753 series ball valve is a split-body model with PN40/16 flanges, made of stainless steel with a TFM 1600 PTFE seat, fire safe and resistant to high temperatures. For chemical, petrochemical industries and hydraulic installations.
Choose your configuration
See all configurations
Réf.
CONF753050
(Indicative price) €333.30
Details
Details
DN inches NPS 2''
Option certificate 3.1 Yes
Construction standard EN 1983 - ISO 17292
CE risk category III Module H
Fire safe standard ISO 10497:2004
EN face-to-face standard EN 558 Series 27
DIN face-to-face standard DIN 3202 F4. DIN 3357-2 ff
Face to face standard error to be processed
Brand ICP VALVES
Tightness test standard EN 12266-1 Rate A
Stem sealing material Graphite gland packing
Antistatic device Yes
Steam Yes
Degassing hole Yes
Opening device Handle
Fugitive emissions standard ISO 15848-1 Class CH
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel ASTM A479 type 316
Lockable Yes
Square, star (mm) MEP M18x12
ATEX compatible Yes
Torque (Nm) 50.0
Diameter of passage 50.00
Face to Face (mm) 1815.0
Fluid Hydrocarbons. gas
Kv (m³/h) 270.0
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Bore Full
ISO pad 5211 Yes
Packing gland Yes
PS (bar) 40
Connections Flanged PN10/40
Seats Pure PTFE TFM 1600 (PMD FF)
Ball material Stainless steel ASTM A351 CF8M
TS max (°C) 230
TS min (°C) -50
Ball valve design Split body
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
CE Yes
Handle material Ductile iron
Handle type Red lever
Fire safe Yes

Configurations

Product Reference Price Stock
Stainless steel ball valve 753 2 piece body RF PN16 DN15 753015 €333.30
61 pcs available in stock
Stainless steel ball valve 753 2 piece body RF PN16 DN20 753020 €395.62
41 pcs available in stock
Stainless steel ball valve 753 2 piece body RF PN16 DN25 753025 €517.55
54 pcs available in stock
Stainless steel ball valve 753 2 piece body RF PN16 DN32 753032 €636.80
37 pcs available in stock
Stainless steel ball valve 753 2 piece body RF PN16 DN40 753040 €888.80
31 pcs available in stock
Stainless steel ball valve 753 2 piece body RF PN16 DN50 753050 €1,129.95
36 pcs available in stock
Stainless steel ball valve 753 2 piece body RF PN16 DN65 753065 €1,314.20
41 pcs available in stock
Stainless steel ball valve 753 2 piece body RF PN16 DN80 753080 €1,766.80
43 pcs available in stock
Stainless steel ball valve 753 2 piece body RF PN16 DN100 753100 €2,533.62
50 pcs available in stock
Stainless steel ball valve 753 2 piece body RF PN16 DN125 753125 €4,626.45
23 pcs available in stock
Stainless steel ball valve 753 2 piece body RF PN16 DN150 753150 €5,801.62
6 pcs available in stock
Stainless steel ball valve 753 2 piece body RF PN16 DN200 753200 €10,280.82
1 pcs available in stock
