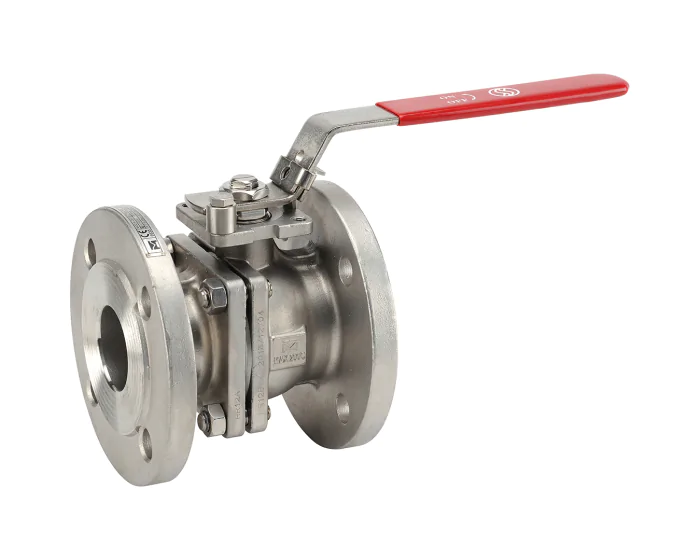

Stainless steel ball valve 763 2-piece body RF PN16

Discover the Sferaco 763 series ball valve, 2-piece body model from the Performance range in stainless steel with flanges PN16/40, full bore, with double antistatic system, PTFE seat for chemicals, petrochemicals, heating
Choose your configuration
See all configurations
Réf.
CONF763050
(Indicative price) €262.33
Details
Details
Option certificate 3.1 Yes
DN inches NPS 2''
Construction standard EN 12516-1
CE risk category III Module H
Fire safe standard API 607 V6
EN face-to-face standard EN 558 Series 27
DIN face-to-face standard DIN 3202 F4. DIN 3357-2 ff
Face to face standard error to be processed
Tightness test standard API 598
Stem sealing material Graphite gland packing
Antistatic device Yes
Steam Yes
Degassing hole Yes
Opening device Handle
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel ASTM A479 type 316
Lockable Yes
Square, star (mm) Square 14 mm
ATEX compatible Yes
Torque (Nm) 40.0
Diameter of passage 50.00
DN 50
Face to Face (mm) 1815.0
Fluid Hydrocarbons. gas
Kv (m³/h) 415.0
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Bore Full
ISO pad 5211 Yes
Packing gland Yes
PS (bar) 40
Connections Flanged PN10/40
Seats PTFE-Glass
Ball material Stainless steel ASTM A351 CF8M
TS max (°C) 200
TS min (°C) -20
Ball valve design Split body
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
CE Yes
Handle material Stainless steel AISI 304
Handle type Red lever
Fire safe Yes

Configurations

Product Reference Price Stock
Stainless steel ball valve 763 2 piece body RF PN16 DN15 763015 €262.32
181 pcs available in stock
Stainless steel ball valve 763 2 piece body RF PN16 DN20 763020 €296.00
162 pcs available in stock
Stainless steel ball valve 763 2 piece body RF PN16 DN25 763025 €323.80
291 pcs available in stock
Stainless steel ball valve 763 2 piece body RF PN16 DN32 763032 €483.20
84 pcs available in stock
Stainless steel ball valve 763 2 piece body RF PN16 DN40 763040 €659.55
239 pcs available in stock
Stainless steel ball valve 763 2-piece body RF PN16 DN50 763050 €871.62
208 pcs available in stock
Stainless steel ball valve 763 2 piece body RF PN16 DN65 763065 €1,137.18
90 pcs available in stock
Stainless steel ball valve 763 2 piece body RF PN16 DN80 763080 €1,464.88
242 pcs available in stock
Stainless steel ball valve 763 2 piece body RF PN16 DN100 763100 €2,108.30
40 pcs available in stock
Stainless steel ball valve 763 2 piece body RF PN16 DN125 763125 €3,975.38
28 pcs available in stock
Stainless steel ball valve 763 2 piece body RF PN16 DN150 763150 €5,890.00
54 pcs available in stock
Stainless steel ball valve 763 2 piece body RF PN16 DN200 763200 €9,734.68
46 pcs available in stock
