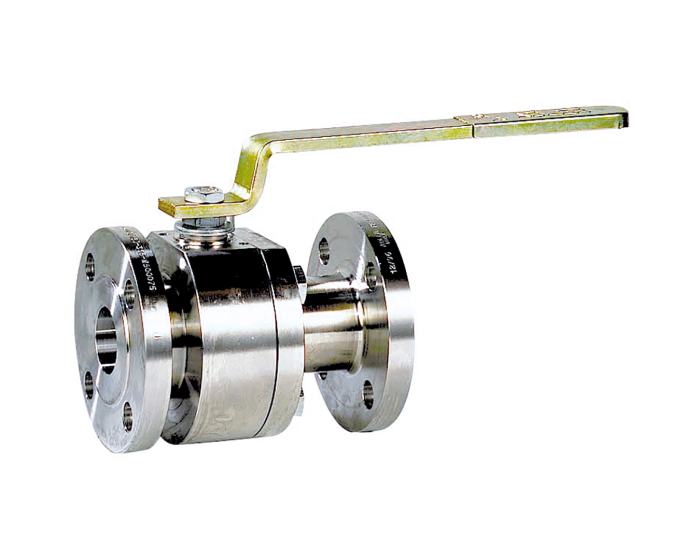

Stainless steel ball valve 767 2-piece body RF ANSI150

Discover the Sferaco 767 series ball valve, 2-piece body model with PN20 Class 150 flanges, stainless steel, ISO 10497 fire safety, adler type FE2, motorizable, packing gland, double tightness for industries and compressed air
Choose your configuration
See all configurations
Réf.
CONF767050
(Indicative price) €1,253.38
Details
Details
Option certificate 3.1 Yes
DN inches NPS 2''
Construction standard BS EN 12516-2 - ISO 14313 - ASME B16.34
CE risk category III Module H
NACE MR0175 Yes
Fire safe standard ISO 10497:2004
SIL SIL 3
EN face-to-face standard EN 558 Series 3
ASME face-to-face standard ASME B16.10
Face to face standard EN 558 Series 3. ASME B16.10
Brand ADLER
Tightness test standard ANSI B16.34
Stem sealing material 15% Graphite filled PTFE gland packing
Antistatic device Yes
Steam Yes
Degassing hole Yes
Opening device Handle
Fugitive emissions standard ISO 15848-1 Class A
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel ASTM A479 type 316L
Square, star (mm) MEP Ø16x10
ATEX compatible Yes
Torque (Nm) 41.0
Diameter of passage 51.00
Face to Face (mm) 2000.0
Fluid Hydrocarbons. gas
Body material Stainless steel F316/F316L
Number of ways 2
Bore Full
ISO pad 5211 Yes
Packing gland Yes
PS (bar) 19
Connections Flanged #150 PN20
Seats PTFE
Ball material Stainless steel ASTM A479 316L
TS max (°C) 200
TS min (°C) -28
Ball valve design Split body
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
CE Yes
Handle material Carbon steel
Handle type Yellow lever
Fire safe Yes

Configurations

Product Reference Price Stock
Stainless steel ball valve 767 2 piece body RF ANSI150 1/2'' 767015 €1,253.38
Currently not in stock
Stainless steel ball valve 767 2 piece body RF ANSI150 3/4'' 767020 €1,437.50
4 pcs available in stock
Stainless steel ball valve 767 2 piece body RF ANSI150 1'' 767025 €1,798.62
Currently not in stock
Stainless steel ball valve 767 2 piece body RF ANSI150 1''1/2 767040 €2,924.58
Currently not in stock
Stainless steel ball valve 767 2-piece body RF ANSI150 2'' 767050 €4,354.95
Currently not in stock
Stainless steel ball valve 767 2 piece body RF ANSI150 2''1/2 767065 €6,302.32
Currently not in stock
Stainless steel ball valve 767 2 piece body RF ANSI150 3'' 767080 €6,557.25
Currently not in stock
Stainless steel ball valve 767 2 piece body RF ANSI150 4'' 767100 €9,262.25
Currently not in stock
