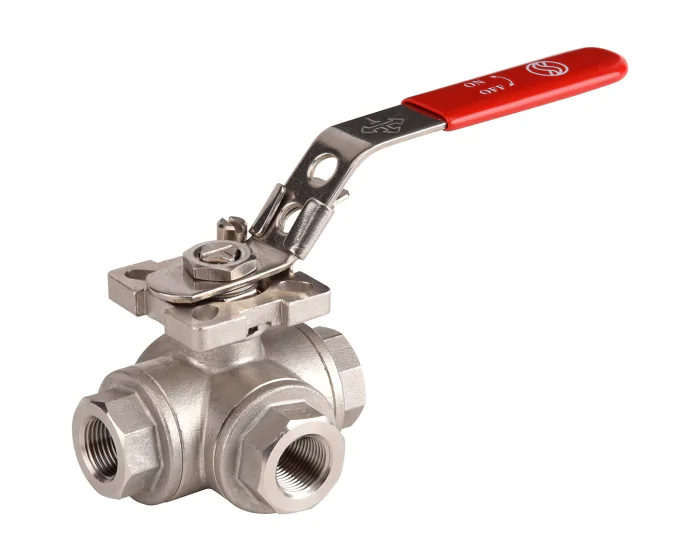

Stainless steel ball valve 780 3 way L-port
References 780-781: stainless-steel three-way threaded ball valves
Our references 780 and 781 are stainless-steel three-way threaded ball valves.
Three-way ball valves are mainly used to mix or distribute flows between three pipes. The valves can be mounted with a L-shaped ball or T-shaped ball. Depending on the port and position of the ball, three-way ball valves have various functions:
- Divert a fluid by closing an outlet pipe to redirect it to another pipe, closed in the previous position
- Mix liquids providing from two pipes into a third one
- Distribute a fluid from a single pipe into two outlet pipes
Our references 780 (L port) and 781 (T port) are made up of CF8M stainless-steel body and ball, and of a PTFE filled with 15% glass fibre seat. They have threaded BSP ends and come in multiple sizes (1/4" to 2"). These reduced-bore ball valves ensure tightness on three ways as they have four seats.
They are fitted with a number of specific technical items:
- Double antistatic device (small balls between stem and body and between stem and ball)
- Locking device
- Anti-blowout stem
- ISO 5211 mounting pad
Our stainless-steel three-way threaded ball valves allow a maximum pressure of 40 bar and temperatures ranging from -25 °C up to +180 °C.
Option certificate 3.1 | Yes |
---|---|
CE risk category | II Module A2 |
Thread standard | ISO 7-1 Rp |
Tightness test standard | API 598 |
Stem sealing material | PTFE gland packing + FKM O-ring |
Antistatic device | Yes |
Opening device | Handle |
Application | Industry |
ATEX atmosphere | Group II Cat. 2G/2D |
Shaft/stem matérial | Stainless steel AISI 316 |
Lockable | Yes |
Square, star (mm) | Square 9 mm |
ATEX compatible | Yes |
Torque (Nm) | 8.0 |
Diameter of passage | 12.00 |
DN | 15 |
Face to Face (mm) | 1050.0 |
Fluid | Hydrocarbons. gas |
Kv (m³/h) | 4.8 |
Body material | Stainless steel CF8M (1.4408) |
Number of ways | 3 |
Bore | Reduced |
ISO pad 5211 | Yes |
Packing gland | Yes |
PS (bar) | 40 |
Seats | PTFE-Glass |
Ball material | Stainless steel AISI 316 |
TS max (°C) | 180 |
TS min (°C) | -25 |
3-way type | L |
Ball valve design | 3-way |
ATEX zone | 1 & 21. 2 & 22 |
Warranty period | 2 years |
CE | Yes |
Handle material | Stainless steel AISI 304 |
Handle type | Red lever |
Configurations
Product | Reference | Price | Stock | |
---|---|---|---|---|
Stainless steel ball valve 780 3 way L-port BSP 1/4'' | 780002 | €82.32 |
247 pcs available in stock
|
|
Stainless steel ball valve 780 3 way L-port BSP 3/8'' | 780003 | €82.32 |
316 pcs available in stock
|
|
Stainless steel ball valve 780 3 way L-port BSP 1/2'' | 780004 | €82.32 |
472 pcs available in stock
|
|
Stainless steel ball valve 780 3 way L-port BSP 3/4'' | 780005 | €106.45 |
113 pcs available in stock
|
|
Stainless steel ball valve 780 3 way L-port BSP 1'' | 780006 | €146.38 |
146 pcs available in stock
|
|
Stainless steel ball valve 780 3 way L-port BSP 1''1/4 | 780007 | €258.08 |
17 pcs available in stock
|
|
Stainless steel ball valve 780 3 way L-port BSP 1''1/2 | 780008 | €317.50 |
24 pcs available in stock
|
|
Stainless steel ball valve 780 3 way L-port BSP 2'' | 780009 | €524.45 |
29 pcs available in stock
|
|
Stainless steel ball valve 780 3 way L-port NPT 1/4'' | 780302 | €82.32 |
240 pcs available in stock
|
|
Stainless steel ball valve 780 3 way L-port NPT 3/8'' | 780303 | €82.32 |
57 pcs available in stock
|
|
Stainless steel ball valve 780 3 way L-port NPT 1/2'' | 780304 | €82.32 |
101 pcs available in stock
|
|
Stainless steel ball valve 780 3 way L-port NPT 3/4'' | 780305 | €106.45 |
113 pcs available in stock
|
|
Stainless steel ball valve 780 3 way L-port NPT 1'' | 780306 | €146.38 |
84 pcs available in stock
|
|
Stainless steel ball valve 780 3 way L-port NPT 1''1/4 | 780307 | €258.08 |
57 pcs available in stock
|
|
Stainless steel ball valve 780 3 way L-port NPT 1''1/2 | 780308 | €317.50 |
27 pcs available in stock
|
|
Stainless steel ball valve 780 3 way L-port NPT 2'' | 780309 | €524.45 |
29 pcs available in stock
|
