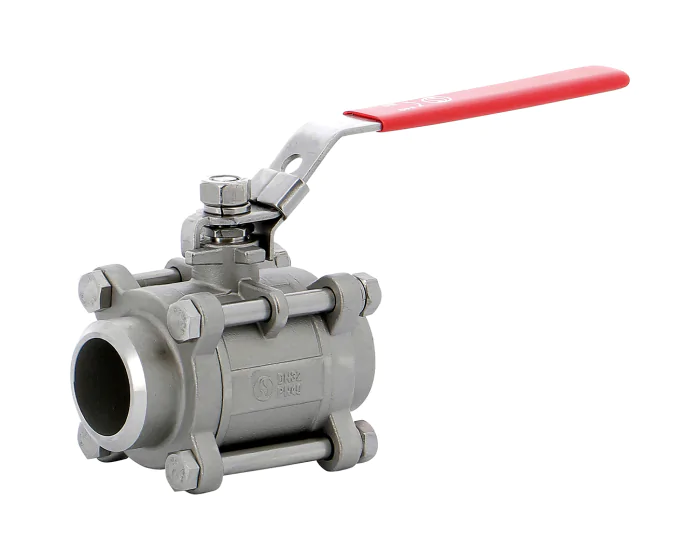

Stainless steel ball valve 791 3-piece body BW

Discover the 791 series ball valve from the Sferaco initial range, 3-piece body in stainless steel, welding BW, with PTFE packing gland for the chemical, pharmaceutical and petrochemical industries
Choose your configuration
See all configurations
Réf.
CONF791015
(Indicative price) €24.20
Details
Details
DN inches NPS 1/2''
Option certificate 3.1 Yes
CE risk category III Module H
Tightness test standard API 598
Stem sealing material PTFE gland packing
Opening device Handle
Application Industry
Shaft/stem matérial Stainless steel AISI 316
Lockable Yes
Torque (Nm) 2.5
Diameter of passage 15.00
Face to Face (mm) 830.0
Fluid Hydrocarbons. gas
Kv (m³/h) 20.7
Body material Stainless steel CF8M (1.4408)
Number of ways 2
Bore Full
ISO pad 5211 No
Packing gland Yes
PS (bar) 63
Connections Welding BW
Seats PTFE-Glass
Ball material Stainless steel AISI 316
TS max (°C) 180
TS min (°C) -20
Ball valve design 3-piece body
Warranty period 2 years
CE Yes
Handle material Stainless steel AISI 304
Handle type Red lever

Configurations

Product Reference Price Stock
Stainless steel ball valve 791 3 piece body BW 1/4'' 791008 €24.20
216 pcs available in stock
Stainless steel ball valve 791 3 piece body BW 3/8'' 791010 €24.62
Currently not in stock
Stainless steel ball valve 791 3-piece body BW 1/2'' 791015 €32.68
2469 pcs available in stock
Stainless steel ball valve 791 3 piece body BW 3/4'' 791020 €39.65
Currently not in stock
Stainless steel ball valve 791 3 piece body BW 1'' 791025 €57.58
3662 pcs available in stock
Stainless steel ball valve 791 3 piece body BW 1''1/4 791032 €84.00
Currently not in stock
Stainless steel ball valve 791 3 piece body BW 1''1/2 791040 €139.98
690 pcs available in stock
Stainless steel ball valve 791 3 piece body BW 2'' 791050 €200.75
527 pcs available in stock
Stainless steel ball valve 791 3 piece body BW 2''1/2 791065 €492.32
Currently not in stock
Stainless steel ball valve 791 3 piece body BW 3'' 791080 €753.75
176 pcs available in stock
Stainless steel ball valve 791 3 piece body BW 4'' 791100 €1,312.18
51 pcs available in stock
