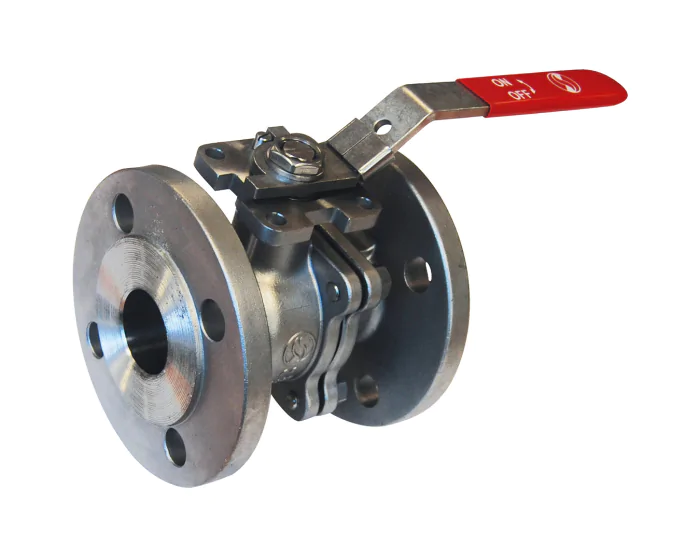

Stainless steel ball valve 794 2 piece body RF ANSI150
Documentation
Details
| DN inches NPS | 2'' |
|---|---|
| Option certificate 3.1 | Yes |
| Construction standard | EN 12516-1 |
| CE risk category | II Module D1 |
| EN face-to-face standard | EN 558 Series 3 |
| ASME face-to-face standard | ASME B16.10 |
| Face to face standard | EN 558 Series 3. ASME B16.10 |
| Tightness test standard | API 598 |
| Stem sealing material | PTFE gland packing + FKM O-ring |
| Antistatic device | Yes |
| Opening device | Handle |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Square, star (mm) | Square 14 mm |
| Torque (Nm) | 30 |
| Diameter of passage | 50 |
| Face to Face (mm) | 2000.0 |
| Fluid | Hydrocarbons. gas |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | F07 |
| Packing gland | Yes |
| PS (bar) | 20 |
| Connections | Flanged #150 PN20 |
| Seats | PTFE-Glass |
| Ball material | Stainless steel AISI 316 |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Ball valve design | Split body |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
Configurations
| Product | Reference | Price | Stock | |
|---|---|---|---|---|
| Stainless steel ball valve 794 2 piece body RF ANSI150 1/2'' | 794015 | €127.90 |
106 pcs available in stock
|
|
| Stainless steel ball valve 794 2 piece body RF ANSI150 3/4'' | 794020 | €144.88 |
112 pcs available in stock
|
|
| Stainless steel ball valve 794 2 piece body RF ANSI150 1'' | 794025 | €209.82 |
144 pcs available in stock
|
|
| Stainless steel ball valve 794 2 piece body RF ANSI150 1''1/4 | 794032 | €246.42 |
28 pcs available in stock
|
|
| Stainless steel ball valve 794 2 piece body RF ANSI150 1''1/2 | 794040 | €413.05 |
92 pcs available in stock
|
|
| Stainless steel ball valve 794 2 piece body RF ANSI150 2'' | 794050 | €543.88 |
77 pcs available in stock
|
|
| Stainless steel ball valve 794 2 piece body RF ANSI150 2''1/2 | 794065 | €845.02 |
55 pcs available in stock
|
|
| Stainless steel ball valve 794 2 piece body RF ANSI150 3'' | 794080 | €1,128.10 |
59 pcs available in stock
|
|
| Stainless steel ball valve 794 2 piece body RF ANSI150 4'' | 794100 | €1,911.08 |
34 pcs available in stock
|
|
| Stainless steel ball valve 794 2 piece body RF ANSI150 6'' | 794150 | €4,431.85 |
14 pcs available in stock
|
