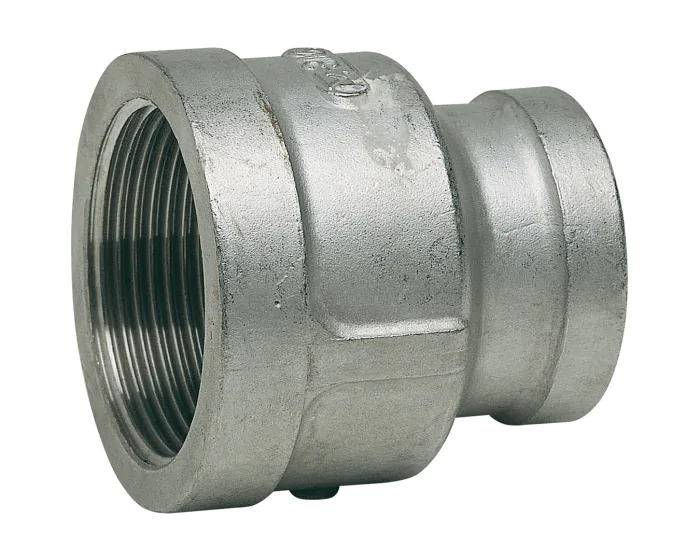

Stainless steel double reducing socket female BSP 2014
The 2014 Series stainless steel fitting, double reduction female/female, Class 150, BSP connection, cylindrical thread, lost wax process for compatible fluids.
Documentation
Certificate of Conformity
pdf - 192.2 ko
Fiche technique raccords inox moulé double réduction FF BSP
pdf - 551.7 ko
Details
Thread standard | ISO 7-1 Rp |
---|---|
Material | Stainless steel ASTM A351 CF8M |
Application | Industry |
DN | 15 |
DN (Output) | 1/4'' |
Face to Face (mm) | 34.0 |
Fluid | Acids |
PS (bar) | 20 |
Connections | BSP FF |
TS max (°C) | 180 |
TS min (°C) | -25 |
Warranty period | 2 years |
Type of fitting | Stainless steel |
Fitting shape | Double reducing socket |
