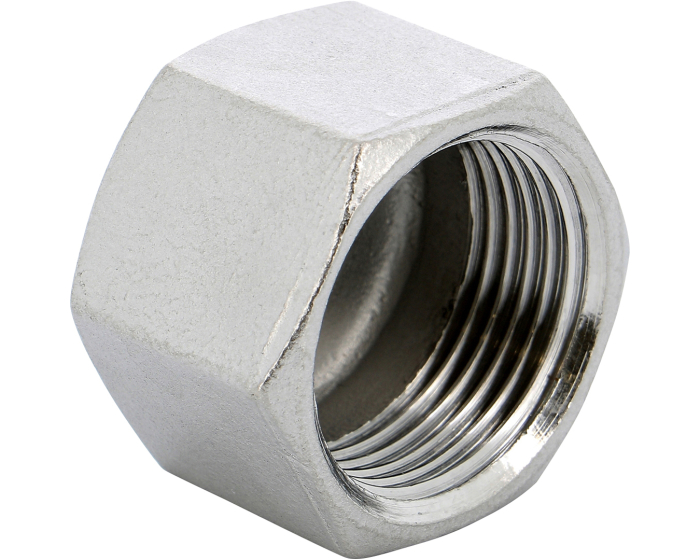

Stainless steel hexagonal cap BSP 2037
The 2037 Series stainless steel fitting, hexagonal female cap model, Class 150, BSP connection, parallel threaded, lost wax process for common compatible fluids.
Documentation
Details
| Thread standard | ISO 7-1 Rp |
|---|---|
| Material | Stainless steel ASTM A351 CF8M |
| Application | Industry |
| DN | 15 |
| Face to Face (mm) | 20.0 |
| Fluid | Acids |
| PS (bar) | 20 |
| Connections | BSP FF |
| TS max (°C) | 180 |
| TS min (°C) | -25 |
| Warranty period | 2 years |
| Type of fitting | Stainless steel |
| Fitting shape | Hexagonal female plug |
