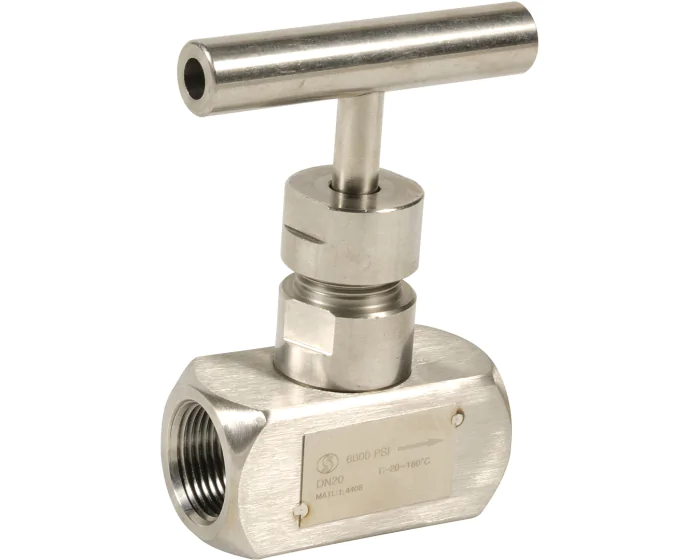

Stainless steel needle valve 487 NPT female/female

Discover the 487 series needle valve from the Sferaco range of fittings in ASTM A351 CF8M stainless steel, NPT female/female fitting, reduced bore, ATEX compatible, with PTFE packing gland, FKM O-ring
Choose your configuration
See all configurations
Réf.
CONF487004
(Indicative price) €91.43
Details
Details
Option certificate 3.1 Yes
DN metric 15/21
Bonnet material Stainless steel ASTM A240-304
Type of seat parallel
Thread standard ANSI B1.20.1
Tightness test standard API 598
Opening device Handle
Centering ring Yes
Application Industry
ATEX atmosphere Group II Cat. 2G/2D
Shaft/stem matérial Stainless steel AISI 304
ATEX compatible Yes
Opening device/signal Manual
Torque (Nm) 106.4
Diameter of passage 6.00
DN 15
Face to Face (mm) 65.0
Sealing Metal / Metal
Kv (m³/h) 1.0
Body material Stainless steel CF8M (1.4408)
Bore Reduced
PS (bar) 400
Connections NPT FF
Seats Stainless steel ASTM A351 CF8M
TS max (°C) 180
TS min (°C) -20
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
Type of stem Rotating
Plug material Stainless steel ASTM A240-304

Configurations

Product Reference Price Stock
Produit
Stainless steel needle valve 487 NPT 1/4''
Produit
Stainless steel needle valve 487 NPT 3/8''
Produit
Stainless steel needle valve 487 NPT 1/2''
Produit
Stainless steel needle valve 487 NPT 3/4''
Produit
Stainless steel needle valve 487 NPT 1''

5 Item(s)
