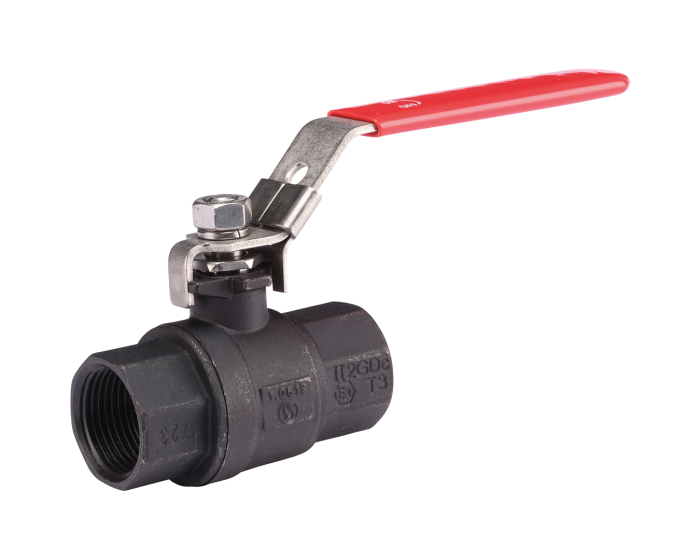

Carbon steel ball valve 705 2-piece body BSP female/female

The Sferaco 705 series ball valve, 2-piece body, in carbon steel with DIN3202 M3 face to face, long thread BSP connection, for ATEX zones 1 & 21, 2 & 22, chemical, pharmaceutical and compressed air industries.
Choose your configuration
See all configurations
Réf.
CONF705004
(Indicative price) €20.08
Details
Details
Option certificate 3.1 Yes
CE risk category III Module H
EN face-to-face standard EN 16722 M3 Series
DIN face-to-face standard DIN 3202 M3
Face to face standard EN 16722 M3. DIN 3202 M3
Thread standard ISO 228-1
Tightness test standard ISO 5208. Rate A
Stem sealing material PTFE gland packing
Antistatic device Yes
Opening device Handle
ATEX atmosphere Group II Cat. 2G/2D
Lockable Yes
ATEX compatible Yes
Torque (Nm) 3.0
Diameter of passage 15.00
DN 15
Face to Face (mm) 75.0
Fluid Hot water / Cold water / Oil / Some acids
Number of ways 2
Bore Full
ISO pad 5211 No
PS (bar) 63
Connections BSP FF
TS max (°C) 180
TS min (°C) -20
Ball valve design 2-piece body
ATEX zone 1 & 21. 2 & 22
Warranty period 2 years
CE Yes
Main product colour Black
Handle material Stainless steel AISI 304
Handle type Red lever

Configurations

Product Reference Price Stock
Produit
Carbon steel ball valve 705 2 piece body BSP 1/4''
Produit
Carbon steel ball valve 705 2 piece body BSP 3/8''
Produit
Carbon steel ball valve 705 2-piece body BSP 1/2''
Produit
Carbon steel ball valve 705 2 piece body BSP 3/4''
Produit
Carbon steel ball valve 705 2 piece body BSP 1''
Produit
Carbon steel ball valve 705 2 piece body BSP 1''1/4
Produit
Carbon steel ball valve 705 2 piece body BSP 1''1/2
Produit
Carbon steel ball valve 705 2 piece body BSP 2''
Produit
Carbon steel ball valve 705 2 piece body BSP 2''1/2
Produit
Carbon steel ball valve 705 2 piece body BSP 3''

10 Item(s)
